| Place of Origin: | China |
|---|---|
| Brand Name: | GPDC |
| Certification: | SGS/CE/ISO90001 |
| Model Number: | ER8 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Material: | SUJ2 | Usage: | Holding Drills, Wire Taps, Milling Cutters, Reamer, Etc. |
|---|---|---|---|
| Application: | Gripping Drills, Taps, Milling Cutters, Cutters, Etc. | Function: | Elastic Shrinkage, Wide Application Range, And Variability |
| Highlight: | uick change router collet,collet chuck holder |
||

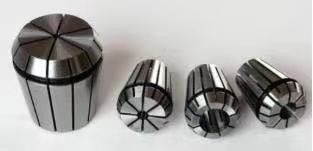

Precision drill chuck ER collect
Material: SUJ2 (high carbon bearing steel: after heat treatment, has toughness and toughness, better wear resistance, and longer elasticity and longer service life) · Hardness: HRC46° · Surface roughness Rz2.5 The inner and inner holes are subjected to strict honing processing and concentricity according to the DIN 6499 standard. There are three kinds of precision grades. S grade 0.015mm, grade A 0.01mm and UP grade 0.005mm·UP grade are recommended for use with HSP nuts. Better stability · Used for clamping drills, wire taps, milling cutters, reamers, etc. · With elastic shrinkage, wide application range
Application:
gripping drills, taps, milling cutters, cutters, etc.
It has the function of elastic contraction, wide application range and rich variability.
Usage:
holding drills, wire taps, milling cutters, reamer, etc.
Function:
elastic shrinkage, wide application range, and variability
·Please inform the required accuracy level when ordering
| Metric collet E8 | |
| Item no. | Clamping range |
| ER8-1.0 | 1.0-0.5 |
| ER8-1.5 | 1.5-1.0 |
| ER8-2.0 | 2.0-1.5 |
| ER8-2.5 | 2.5-2.0 |
| ER8-3.0 | 3.0-2.5 |
| ER8-3.5 | 3.5-3.0 |
| ER8-4.0 | 4.0-3.5 |
| ER8-4.5 | 5.0-4.5 |
| Accuracy | Item | Clamp Dia. | |
| ER Elastic collet | 0.01 | A-ER8 | 1-5 |
| A-ER11 | 1-7 | ||
| A-ER16 | 1-10 | ||
| A-ER20 | 1-13 | ||
| A-ER25 | 2-16 | ||
| A-ER32 | 2-20 | ||
| A-ER40 | 3-26 | ||
| 0.005 | UP-ER8 | 3-5 | |
| UP-ER11 | 3-7 | ||
| UP-ER16 | 3-10 | ||
| UP-ER20 | 3-13 | ||
| UP-ER25 | 3-16 | ||
| UP-ER32 | 3-20 | ||
| UP-ER40 | 3-26 |
In December 2018, AUTOFOR Chairman PAUL YANG successfully acquired a domestic drilling chuck (clamp) manufacturer and opened the strong layout of AUTOFOR “high-precision industry”.
Since 2019, the high-precision drill chucks (collect) of the “Jie Paishi GPDC” brand under the AUTOFOR have begun to go global...
Precision Cut-off Wheel Series
AUTOFOR, as a global precision cutting enterprise, has obtained more than 10 invention patents, 600 formulations and 30,000 specifications. Furthermore,resin grinding wheel can achieve 0.125 mm,which touched the world's thinnest record, and the entire line of products through SGS environmental friendly certification.We can also customize the formula according to the personal needs of customers.
