| Place of Origin: | China |
|---|---|
| Brand Name: | GPDC |
| Certification: | SGS/CE/ISO90001 |
| Model Number: | ERC16 |
| Minimum Order Quantity: | 10 |
| Price: | Negotiable |
| Material: | SUJ2 | Usage: | Holding Drills, Wire Taps, Milling Cutters, Reamer, Etc. |
|---|---|---|---|
| Application: | Applied Widely And Variably | Function: | Elastic Shrinkage, Wide Application Range, And Variability |
| Water Pressure: | 70KGf/Cm2 | Surface Roughness: | Ra≤0.15μm |
| Highlight: | collet chuck holder,straight collet chuck |
||

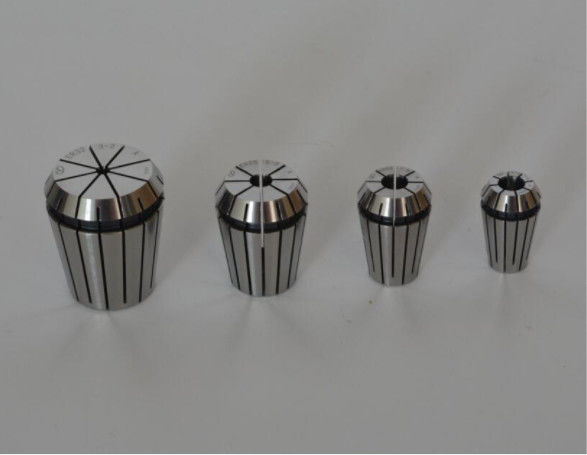

ERC Precision ER Coolant collet Internal cooling water stopper clamp Trench
Material:SUJ2(High-carbon bearing steel:after heat treatment,it has rigid hardness and toughness,better grinding quality,good flexibility,and longer useful life)
· Hardness:HRC44-48
· Surface roughness:within RZ2.5
· The internal hole is manufactured by precise honing
· The concentricity is totally examined according to DIN norm.There are three classes of precision : A class 0.01mm and UP class 0.005mm
· UP class is recommeded to be used with HSP clamping nut,it will have better stability.
· It is used for the cutting tools like drills,taps ,mills and reamers ,etc.
· It has flexibility and can be applied widely and variably
· Please inform the required precision when ordering
| D | CLASS S | CLASS A | CLASS UP |
| 3.0-9.9 | 0.015 | 0.01 | 0.005 |
| 10.0-26.0 | 0.015 | 0.01 | 0.005 |
