AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | SGS/CE |
| Model Number: | LS205 |
| Minimum Order Quantity: | 100 pcs |
| Price: | Negotiable |
| Packaging Details: | carton,wooden,customized |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300000 pcs/m |
| Material: | Resin | Color: | Red/black/green |
|---|---|---|---|
| Outer Diameter: | 255cm/customized | Thichness: | 1.0cm/customized |
| Inner Diameter: | Customized | Application: | Aerospace,automobile,steamship,bicycle And Agricultural Machinery |
| Type: | Abrasive Disc | Adhesive: | Resin Bond |
| Abrasive: | WA,PA,FA,SA | ||
| Highlight: | 1.0cm Clutch Wire Cutting Wheel,SGS Resin Wire Cutting Wheel |
||

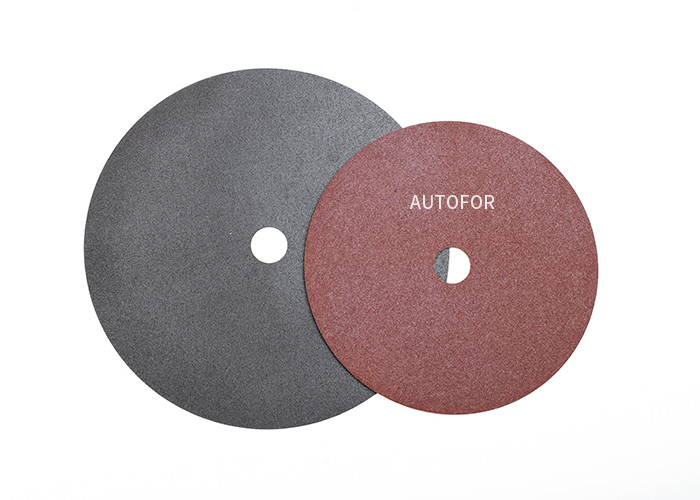

Clutch wire cut-off wheel gear wire cutting wheel control wire
Clutch wire cut-off wheel gear wire cutting wheel control wire brake cable Push Pull cable
AUTOFOR ultra-thin resin cutting wheels are derived from imported manufacturing equipment and production technology from Germany, and the cutting effect of the cutting wheels produced has exceeded the European, American and Japanese brands.
AUTOFOR has carefully developed various metal / alloy / metallographic / non-metal cutting wheels for more than 30,000 customers worldwide, which are widely used in non-ferrous metals, non-ferrous metals, etc. , Tool steel, bearing steel, high-speed steel, cast iron, cermet, tungsten steel, tungsten rod, tungsten wire, tungsten flake alloys after treatment: hardened parts, chrome plated alloy, titanium alloy, nickel titanium cobalt and other hard alloy Super hard alloy, products include steel rails, sliders, guide rails, golf clubs, various machine tool mold accessories and a series of low, medium and high hardness materials ...
Non-metallic materials are: ceramics, glass epoxy silicon, glass, glass steel, quartz, rock, artificial bone, super hard glue wood
Materials, cobalt-nickel materials, carbon fibers, polyamide fibers, composite materials, etc .... suitable for cutting and cutting, slotting and slitting,
High-precision cutting of grooves and grooves, metallographic analysis.
Features:
1. Germany technique and manufactured by ourselves, with high quality and good price, the customers who start to work with us then cooparete for long time.
2. No burr after cutting , cutting resistance 20-80% better than Euro-Japanese-American Brand Cutting wheel.
3. No smoke during cutting
4. Cutting port quality very smooth, no burn, no loose
Cutting wheel of other specifications can be supplied as per customer's request.
Application:
1. industries including aerospace, automobile, motorcycles, ships, bicycles
2. agricultural machinery.
specifications (mm)
| Model | OD(mm) | THK(mm) | ID(mm) | Line speed (M/S) |
| LS180 | 180 | ≥0.3 | 12.7 25.4 31.75 32 40 50 | 50--80 |
| LS205 | 205 | ≥0.4 | 12.7 25.4 31.75 32 40 50 | 50--70 |
| LS230 | 230 | ≥0.4 | 12.7 25.4 31.75 32 40 50 | 50--70 |
| LS255 | 255 | ≥0.5 | 12.7 25.4 31.75 32 40 50 | 50--70 |
Cutting effects:
Precision Cut-off Wheel Series
AUTOFOR, as a global precision cutting enterprise, has obtained more than 10 invention patents, 600 formulations and 30,000 specifications. Furthermore,resin grinding wheel can achieve 0.125 mm,which touched the world's thinnest record, and the entire line of products through SGS environmental friendly certification.We can also customize the formula according to the personal needs of customers.
AUTOFOR aims to contribute its wisdom of the high-end and high-precision industries to China and even the world. Our cutting wheels used for these consumables include, among others:
----- Control cable / brake hose precision cutting
----- Amorphous / nano / silicon steel precision cutting
----- Tube/bars/profile precision cutting
----- " dental disc"polishing silicon resin discs
----- "Low hardness metal" precision cutting
----- "Medium hardness metal" precision cutting
----- "High hardness metal" precision cutting
----- "Slotting&gapping" precision cutting
Company Profile
AUTOFOR Company, the craftsman Enterprise leading global exquisite "Precision Cutting Technology" !
AUTOFOR Company, the promoter and the navigator of "Precision Cutting Technology"!
AUTOFOR Company, the industry standard setter and the developer of "Precision Cutting Equipment"!
AUTOFOR Company, the successor and the specialist of "Precision Resin Cutting wheel"!
AUTOFOR Company, the customizer and developer of “ Special Cutting Fluid”!
AUTOFOR Company, the designer and user of “Special Fixture”!
AUTOFOR Company, pledges to specialize in the Precision Cutting Technology for 100 years!
