AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | AF017 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 1900*1450*2150（MM） | Main Machine Weight: | 800KG |
|---|---|---|---|
| Cutting Mode: | Horizontal Cutting | Aperture Of Suitable Grinding Wheel: | Φ32MM |
| Maximum RPM: | 4700R/MIN | X-axis Range(MM): | 120MM |
| Feed Rate: | 0-1000MM/MIN | Feeding Mode: | Stepping Feed |
| Power Supply: | 380V/50HZ 480V/60HZ | Main Motor Power: | 5KW |
| Highlight: | 5KW Thermocouple Pipe Cutting Machine,120MM Thermocouple Pipe Cutting Machine |
||

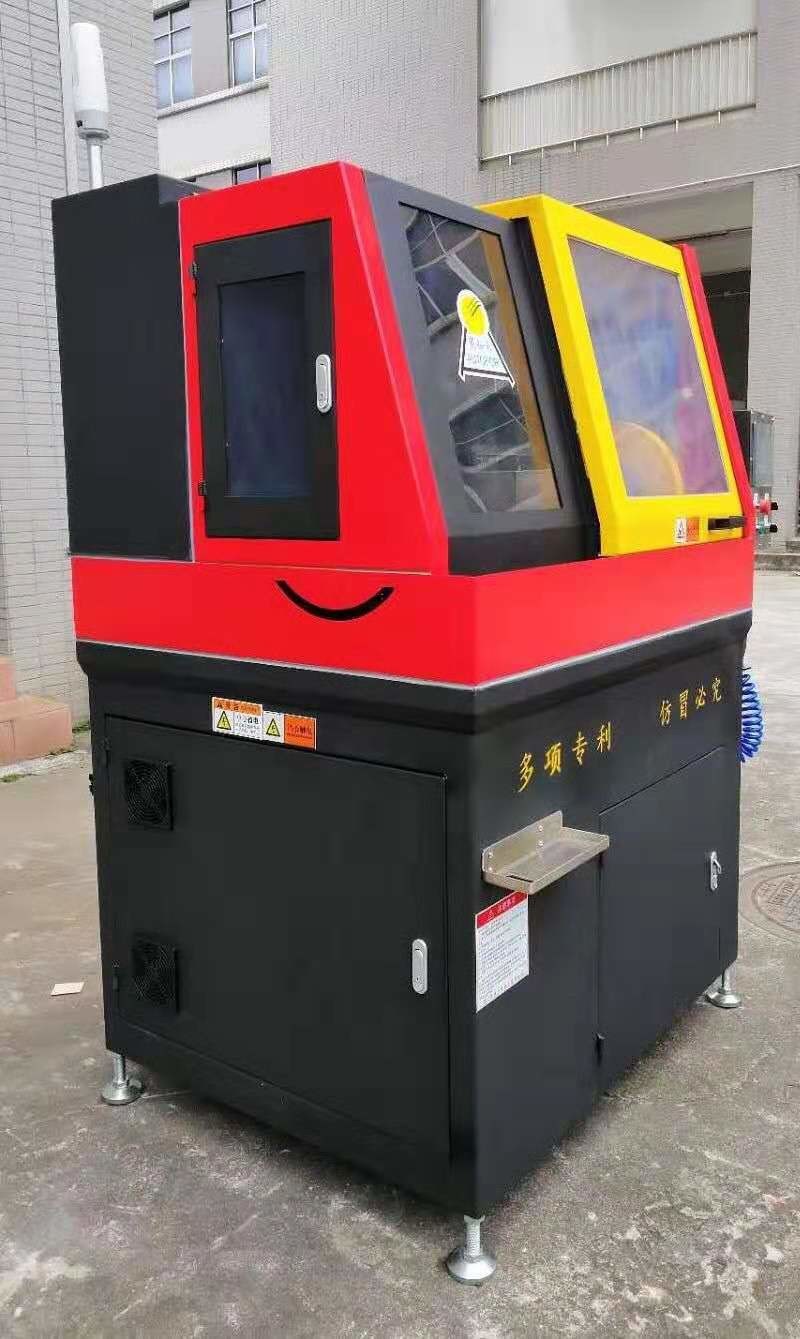

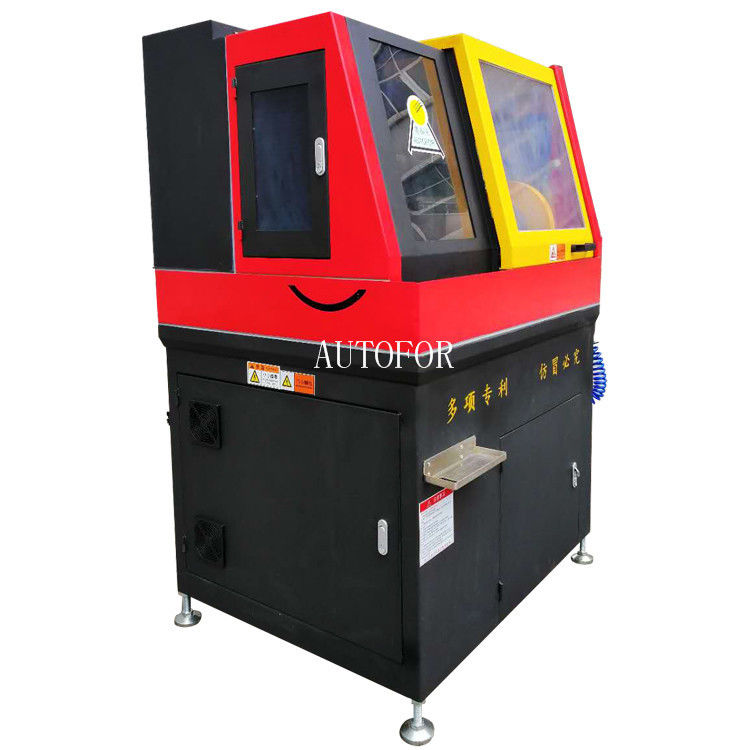

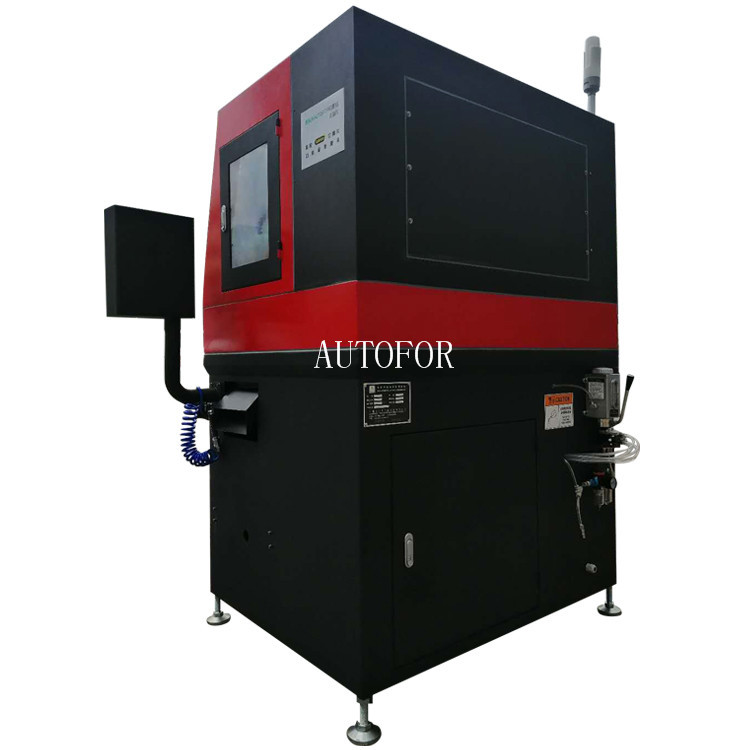

Automatic thermocouple Pipe Cutting Machine steel Tube Bar Cut Equipment
AUTOFOR Automatic thermocouple Pipe Cutting Machine steel Tube Bar Cut Equipment enables to cut the steel pipe no burr, noburn flatness,the accuracy can up to +_0.03mm;The efficiency is very high,5-10 pcs cut together.
| Model Item | High-end Version | Standard Version | ||
| USB001 | AF017 | USB001 | AF017 | |
| Shape size (length * width * height)Without foot cup(mm) | 1155*940*1680 | 720*1050*920 | 1155*940*1680 | 845*1150*1150 |
| Main machine weight(KG) | 750 | 380 | 550 | 380 |
| Machine power(KW) | About 12.8 | About 5.5 | About 2.8 | About 1.9 |
| Main drive power(KW) | 11 | 3 | 1.5 | 0.55 |
| Maximum grinding wheel(mm) | 205 | 230 | 205 | 230 |
| Center hole(mm) | 32 | 32 | 25.4 | 25.4 |
| Rotating speed(r/min) | 0-4000 | 3500 | 0-4000 | 3500 |
| Maximum cutting capacity(mm) | ∮145 | ∮90 | ∮58 | ∮45 |
| Maximum cutting range(mm) | 140 | 90 | 150 | 130 |
| cutting speed | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Servo feeding | Stepping feeding | Servo feeding | Servo feeding |
| Push and cut mode | Z-cut | Z-cutg | Z-cut | Z-cut |
Stainless steel capillaries have good flexibility, corrosion resistance, high temperature resistance, abrasion resistance, tensile strength, water resistance and excellent electromagnetic shielding properties. Capillary as a raw material is widely used in chemical, petroleum, electronics, jewelry, medical, aerospace, air conditioning, medical equipment, kitchen appliances, pharmaceuticals, water supply equipment, food machinery, power generation, boilers and other fields.
With the needs of the current social development, the requirements for stainless steel capillary processing are getting higher and higher, so it is an inevitable condition to continuously improve the cutting process of stainless steel capillary tubes!
Stainless steel capillary is a very fine material. The general specification is between 0.2mm and -3mm in outer diameter, and the wall is very thin.
Therefore, the cutting process must use precision cutting equipment.
AUTOFOR stainless steel capillary cutting equipment is a high-precision stainless steel capillary cutting machine.
Features:
1. can automatically feed, greatly saving labor costs.
2. can be bundled together to cut, greatly improving work efficiency.
3. processing cutting precision is high, the precision can be controlled at ±0.03mm.
4. the overall structure is reasonable and compact, good design layout, making the operation of personnel more simple and fast.
The stainless steel capillary cutting piece developed by AUTOFOR for the market has been well received in the industry, and it solves the problems of heavy burr cutting, cutting burn and slow cutting efficiency for many users. Equipped with Altof's AUTOFOR precision cutting equipment, the cut port is smooth, flat, burr-free, and free of burns! AUTOFOR truly enhances the cutting process for customers!
