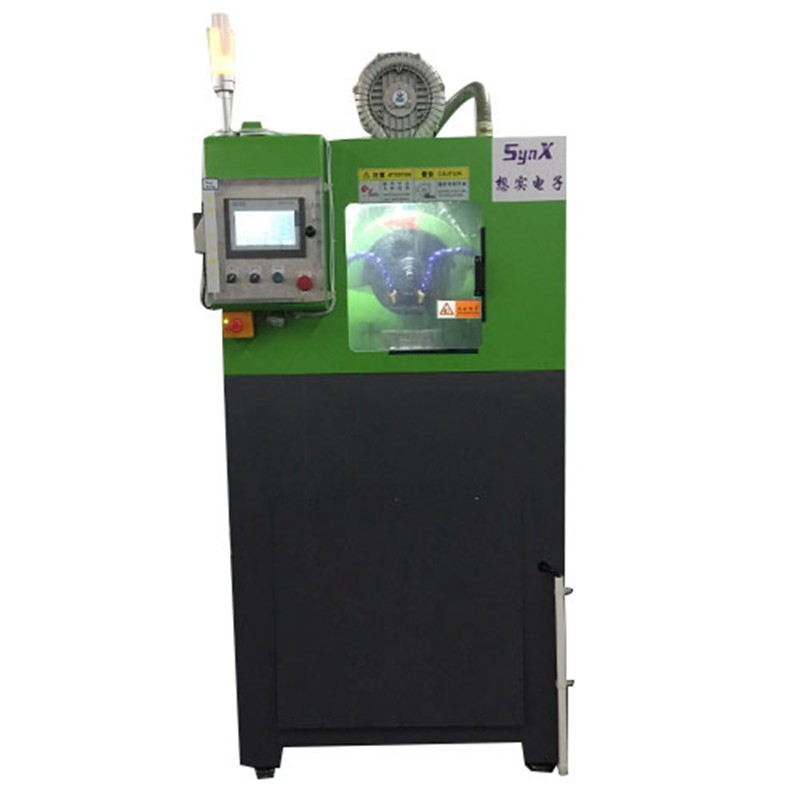

0.2mm Magnetic Core Cutting Machine Grid Transformer Cut Equipment

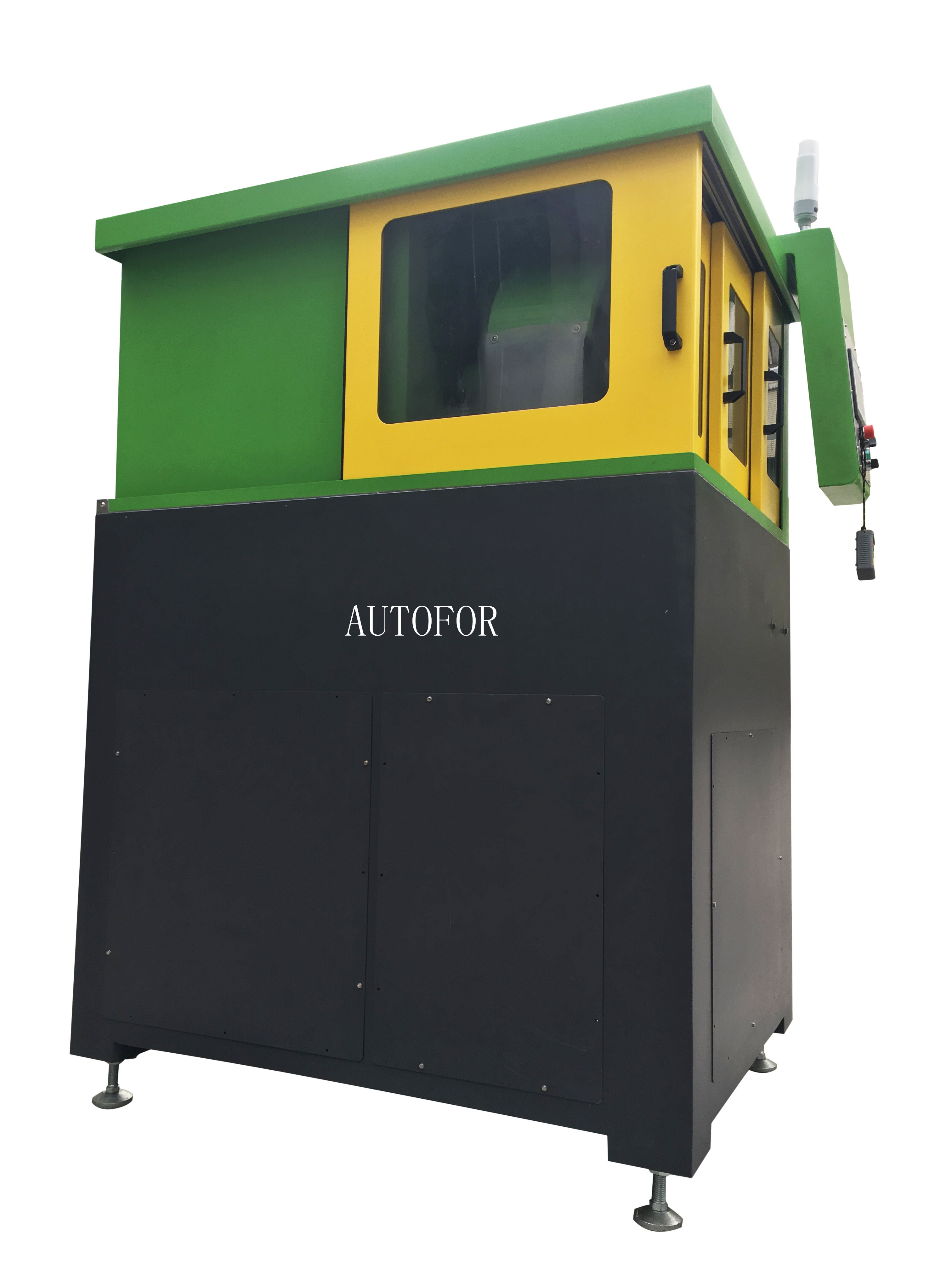

                                        Large Transformer Core Cutting Machine,Super-large Grid Transformer Cut Equipment



Cutting machine model	Core size AMX [mm] ID/OD/SW
AF01114	cut in x-direction:
	Diameter 110-220mm,height 110mm
	cut in Y-direction:
	diameter 0-110mm,height 0-110mm
AF018	cut in Y-direction:
	circle
	diameter 0-250mm
	height0-70mm
	cut in x-direction:
	length 0-350mm
	width 0-350mm
	height 0-100mm
AF015	cut in Y-direction:
	circle
	diameter 0-250mm
	height0-70mm
	cut in x-direction:
	length 0-350mm
	width 0-400mm
	height 0-100mm



Super-large Grid Transformer cutting effects:



Application:

silicon steel, silicon steel, amorphous, nanocrystalline, transformer, ultrafine crystal, permolloy, iron silicon aluminum, iron silicon, ferrite, denture dental, spring steel, stainless steel Rod, tungsten rod, tungsten wire, guide rail, screw, exhaust pipe, capillary, needle, ball cage, ball head, cast iron, carbon steel, die steel, tool steel, carbon steel, bearing steel, copper, aluminum, etc. Various hardness alloys

Precision magnetic  Core cutting machine advantage:
1. Our motor and spindle independently work in the warehouse, and the bubble is in the cutting room. Our life is 3-5 times longer;
2. The matching structure of our main shaft and Hummer main shaft seat is extremely stable. It will not shake at 4500 rpm. The motor is to lock one plate, the other end of the board is locked with a small main shaft. The structure is suspended, more than 3000. It starts to shake, so our cutting efficiency is high and stable;
3. our drive platform is 60mm steel plate, the cutting platform is 40mm steel plate, anti-shock and stability is very strong;
4, the extra large spindle, using Japan's aviation-class bearings, beating less than 2 wire, our cutting precision is high, the counterpart is domestic, our cost is more than 5 times, and the service life is 3-5 times longer.
5. the use of Taiwan's silver heavy-duty roller guide slider, the precision up to 1 wire. Ensure that the workpiece is not cut obliquely during the cutting process
6. The lower body frame has a built-in independent water tank with a capacity of up to 120L, which increases the sinking force of the whole machine, improves stability and reduces resonance.
7. My driver has two functions: positive knife cutting and sweeping knife cutting. The only one is the positive knife cutting function, and there is no sweeping function.
8. platform X / Y / Z axis, all are automated, peers are not or just manual, adjustment is very inconvenient;
9. we have a universal fixture platform, no peers;
10. We have the German version of the wireless remote control function, which is not disturbed within 20 meters.
11. the cutting machine weight 1600KG, peer 400KG, our company has a lot of anti-shock resistance;
12. we drive the platform and work platform, "gantry milling", high precision, no peers;
13. Our machine is “de-stressed”, the accuracy of the equipment will not change for a long time, and there is no peer;
14. All of our top-level configurations, such as Siemens and Schneider Reese, are stable and reliable, and the overall cost of the whole machine is three times that of the peers;
15. We have more than 28 inventions, practical and appearance patents, and strong intellectual property and innovation;
16. We have “precision cutting piece” with more than 600 kinds of formulas, 30,000 kinds of specifications, which can be customized according to customer requirements, and “combined cutting fluid” core competitiveness, professional integrator
17. we have efficient professional fixtures, simple and practical operation
18. We also have a purification system that can achieve no impurity status; ultra-ideal cutting conditions for cutting working points, even reaching the world-class mirror cutting effect; and 100% utilization of cutting fluid, no waste; using equipment purification system, The service life of cutting fluid is 3-5 times higher than that of its peers, which greatly reduces the cost of use for customers.
19. We also have a refrigeration system. Extend the service life of the cutting piece by 10%-30%; reduce the volatilization of the cooling liquid; reduce the cut burn of the workpiece, improve the yield; keep the working environment constant, improve the consistency of the product; Overall stability.
20. can be customized according to customer requirements non-standard custom cutting machine

Service life:
1. We also have a purification system that can achieve no impurity status; ultra-ideal cutting conditions for cutting working points, even reaching the world-class mirror cutting effect; and 100% utilization of cutting fluid, no waste; using equipment purification system, The service life of cutting fluid is 3-5 times higher than that of its peers, which greatly reduces the cost of use for customers.
2, we also refrigeration system. Extend the service life of cutting blades by 10%-30%; reduce the volatilization of coolant; reduce the cut burn of the workpiece, improve the yield; work environment constant temperature, improve product consistency; improve the service life of the equipment and Overall stability.

Client live shot:

   Since 2017,AUTOFOR was being exported to many magnetic cores cutting machine to Germany,Spain,America,Japan,India ,etc...,and won very good comment from the customers.

Advantages of cutting fluid refrigeration system:
1. Extend the service life of the cutting piece by 10%-30%;
2. Reduce the evaporation of the coolant;
3. Reduce the cut burn of the workpiece and improve the yield;
4. Constant working environment to improve product consistency;
5. Improve the service life and overall stability of the equipment.

Cutting fluid purification system:
  The cutting fluid after being treated by AUTOFOR “Cutting Fluid Purification System”:
1. It can reach the state without impurities;
2, the ultra-ideal cutting conditions of the cutting work point, and even achieve the world-class mirror cutting effect;
3, and the cutting fluid is 100% utilized, no waste;
4. Using the equipment purification system, the service life of the cutting fluid is 3-5 times higher than that of the peer, which greatly reduces the cost of use for the customer.

The Problems of the cutting fluid energy saving and environmental protection system program

1.Is there a filtration system retrofit solution for multiple cutting machines?

At present, each cutting machine in the factory is equipped with a separate filtering system. If dozens of machines are equipped with a filtering system, the equipment cost and site occupancy will be greatly increased.

2.Is there a solution to optimize the factory production environment?

At present, dozens of cutting machines and filtration machines in the factory are constantly working, generating a large amount of water vapor and impurities, which causes the current production environment of the factory to be tidal and messy.

3.Is there a filtration system that is convenient for managing employees to increase productivity?

If the factory is equipped with dozens of filtration machines, the impurities generated by each device must be handled by employees, maintenance and management troubles, and invisibly increase the workload of employees.
