Place of Origin: | China |
---|---|
Brand Name: | AUTOFOR |
Certification: | CE/SGS/ISO90001 |
Model Number: | AF015 |
Minimum Order Quantity: | 1pcs |
Price: | Negotiable |
Packaging Details: | wooden/customized |
Delivery Time: | 15 days |
Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
Supply Ability: | 1000 pcs/m |
Size(LWH): | 1900*1450*2150(MM) | Main Machine Weight: | 1950KG |
---|---|---|---|
Power Supply: | 380V/50HZ 480V/60HZ | Main Motor Power: | 11KW |
Application: | CRGO Wound Core GAP CORE /all Shape Core | Warranty: | 1 Year |
Usage: | Cutting And Gapping | Speed Of Cutting: | Max.4700r/min |
After-sales Service Provided: | Online Support | Cutting Precision: | ±0.2mm |
Highlight: | magnetic core cutting machine,cnc cutting machine |

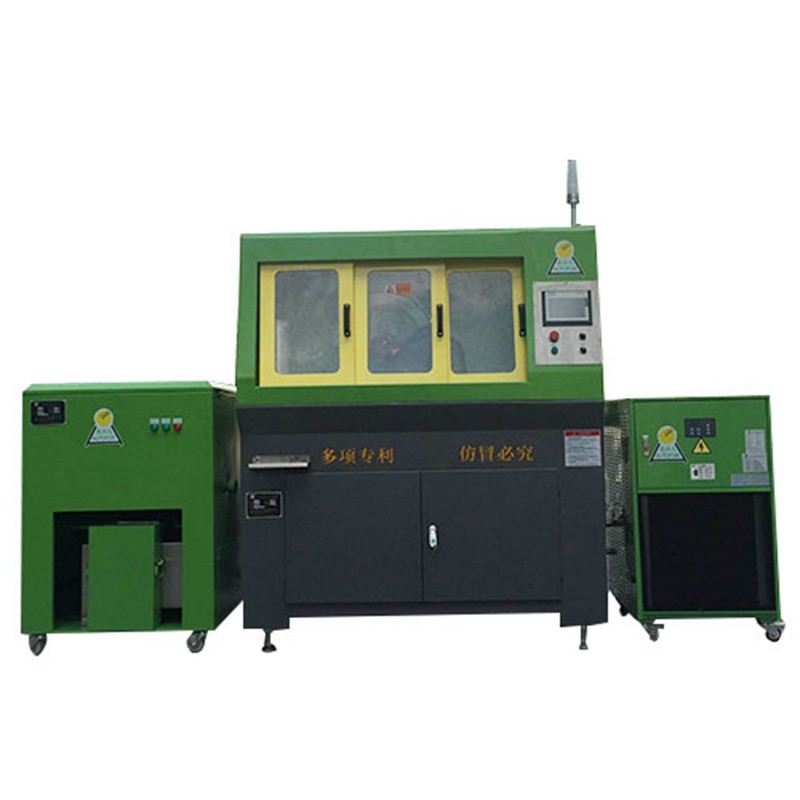

CRGO Wound core GAP CORE cutting machine high efficiency
AUTOFOR cutting machine enables to CRGO Wound core GAP CORE,C-CORE,E-core and another shape of cores seamlessly,flatnessly,smoothly.
Comparing with the worldwide famous brand,AUTOFOR cutting machine has more advantagements:
The following innovations of 22 items, leading the European and American brands 13 items and leading the match of 49 items.
No. | Function | AUTOFOR | European/ American/Japanese Brands |
Domestic brand
|
|
high-end version | standard version | ||||
1 | Full set of invention patents for cutting system | √ | √ | × | × |
2 | Patent of Cutting Fluid Refrigeration System | (optional) | (optional) | × | × |
3 | Patent of Cutting Fluid Purification System | (optional) | (optional) | × | × |
4 | General Wireless Remote Control System Patent | √ | × | × | × |
5 | Patent for Multi-compartment Separation of Cutting Chamber and Powertrain | √ | √ | × | × |
6 | Hummer Spindle and Spindle Seat Patent | √ | √ | × | × |
7 | Patents for Multi-group High Efficiency Cutting Equipment | √ | √ | × | × |
8 | Patents for Multi-group High Efficiency Cutting Fixture | √ | √ | × | × |
9 | Patents for five usages of Software Copyright | √ | √ | √ | × |
10 | Patents for Cutting platform’s three-axis automatic motion | √ | √ | × | × |
11 | Patent for Push-cut Cutting | √ | √ | × | × |
12 | Patent for Universal Extended Platform of machine | √ | √ | √ | × |
13 | Patent for High Efficiency Fixture | √ | √ | √ | × |
14 | Patent for Intelligent Control of Cutting Fluid Water Level | √ | √ | × | × |
15 | Patent for built-in water tank of machine | √ | √ | √ | × |
16 | Patents for high-grade appearance | √ | √ | √ | × |
17 | Axis Feeding Cutting Machine Series | √ | √ | × | × |
18 | Siemens Intelligent Control System | √ | × | √ | × |
19 | Siemens Motor Drive System | √ | × | √ | × |
20 | Siemens, Schneider and other international first-line brand electrical accessories | √ | × | √ | × |
21 | AMA Intelligent Alarm Indicating System in Germany | √ | × | √ | × |
22 | Siemens PLC Control System | √ | × | √ | × |
23 | Siemens Frequency Conversion Control System | √ | × | √ | × |
24 | Double Leakage Safety Protection System for Schneider Machine | √ | × | √ | × |
25 | 1600KG Heavy and shock Resistant Frame | √ | √ | × | × |
26 | Technological Treatment of Gantry Milling for Integral Frame | √ | √ | √ | × |
27 | Integral Stress Removal Treatment for Integral Frame | √ | √ | √ | × |
28 | Overall Painting Treatment of Frame and Cover | √ | √ | √ | √ |
29 | Equipment Maintenance Toolbox | √ | √ | × | × |
30 | Equipment Maintenance Products | √ | √ | × | × |
31 | Handy Tool Box | √ | √ | × | × |
32 | Various types of magnetic cores are specially equipped with cutting fluid | optional | optional | × | × |
33 | Self-flow Fluid Exchange Drainage of Cutting Fluid | optional | optional | × | × |
34 | platform Tri-Axis Intelligent Motion Function | √ | √ | × | × |
35 | Automatic Compensation Function for Grinding Wheel Wear | √ | √ | √ | × |
36 | Zero Preservation and Automatic Zero Return Function | √ | √ | √ | × |
37 | Trinomial cutting and feeding function | √ | √ | × | × |
38 | Servo automatic feeding function | √ | √ | √ | × |
39 | Sawing Cutting Function (Automatic Conversion) | √ | √ | × | × |
40 | Push-cut cutting function (automatic conversion) | √ | √ | × | × |
41 | adjusting function of cutting speed | √ | √ | √ | √ |
42 | Feed Speed Adjustment Function | √ | √ | √ | √ |
43 | Water vapor absorption cycle treatment system | Optional | Optional | × | × |
44 | Intelligent Management System of Ethernet Remote Monitoring and Service | Optional | Optional | × | × |
45 | Memory function of cutting parameter data base | Optional | Optional | × | × |
46 | Temperature alarm function | Optional | Optional | × | × |
47 | Rotation function of Cutting Board | Optional | Optional | √ | × |
48 | Alarm function when Overpressure | Optional | Optional | × | × |
49 | Pulse laser cutting function | Optional | Optional | × | × |
50 | Detect function of grinding wheel flake | Optional | Optional | × | × |
51 | Laser-assisted positioning | Optional | Optional | × | × |
52 | Infrared Tool Setting Function | Optional | Optional | × | × |
53 | Laser-assisted positioning | Optional | Optional | × | × |
Comparing with domestic small brand,AUTOFOR has absolute advantage:
ITEM | AUTOFOR ADVANTAGES | AUTOFOR(High version) | Domestic Small Brand |
1 | high cutting efficiency | Hummer spindle, spindle speed reaches 4500 without jitter | spindle will move, starting to shake over 3000 rpm |
High speed, many times of cutting frequency, and multi-knife patent selection | Low speed, low frequency of cutting | ||
2 | high accuracy | The accuracy of Japan's aviation-grade bearings and spindles is within 0.02mm. | Did not do these processes; |
Drive platform and work platform, through the "gantry milling" and "de-stressing" process (AUTOFOR exclusive) | Did not do these processes; | ||
3 | equipment quality/working life/function/steady....more strong | Weight:1600kg | Weight:400-800kg |
The steel plate of the drive platform is up to 60mm thick and the cutting platform is up to 40mm thick. | Large platform is generally 10mm steel plate | ||
International first-line brands, top-level configurations such as Siemens, Honeywell, Schneider, Shanghai Silver, and Raytheon | Domestic small brand | ||
Extra large spindle with Japanese aviation class bearings | small spindle | ||
Drive platform and working platform, through the "gantry milling" and "de-stressing" process (Altov exclusive), the accuracy is constant all the year, the life of the use is more than 10 years is no problem | Without doing this process, the accuracy of the cut product is gradually reduced after 1 year, and the more it is cut, the more difficult it is to use. | ||
Separation of drive and cutting chambers, safety, long life of equipment and accessories | The motor, main shaft and cutting are all in the cutting chamber, the risk of leakage, the life of equipment and accessories is extremely short | ||
4 | high quality and good price | Drive platform 60mm steel plate gantry milling, integrated sheet metal cost is more than 4 times higher than its peers | 5-15mm steel plate is not used, no gantry milling and stress relief treatment |
Siemens motor in Germany; | Ordinary domestic motor | ||
Japan Airlines class bearing, φ110mm extra large spindle, the accuracy is within 0.02mm, the cost is 1650USD , 5 times higher than the same industry | Ordinary small spindle φ45-60mm | ||
International first-line brands, Siemens, Schneider, Raytheon, Honeywell, Taiwan's top silver and other top-level configurations, cost 6-10 times higher than the industry | Domestic small brand | ||
Buddly spindle seat, two groups weighing up to 120kg | no | ||
Multi-groove pulley, cost 100USD /PCS, cost 10 times higher than the V-belt | Ordinary triangular leather wheel | ||
Multi-ditch belt, cost 50USD / PCS, the cost is 6 times higher than the ordinary triangle belt | Ordinary triangle belt | ||
Gantry milling, "de-stressing", "painting", cost in kilograms | there is no cost for these artwork | ||
5 | leading advantages | It has 38 patents, 13 leading Germany and Japan, and 39 domestic counterparts. (Can refer to the patent certificate) | no |

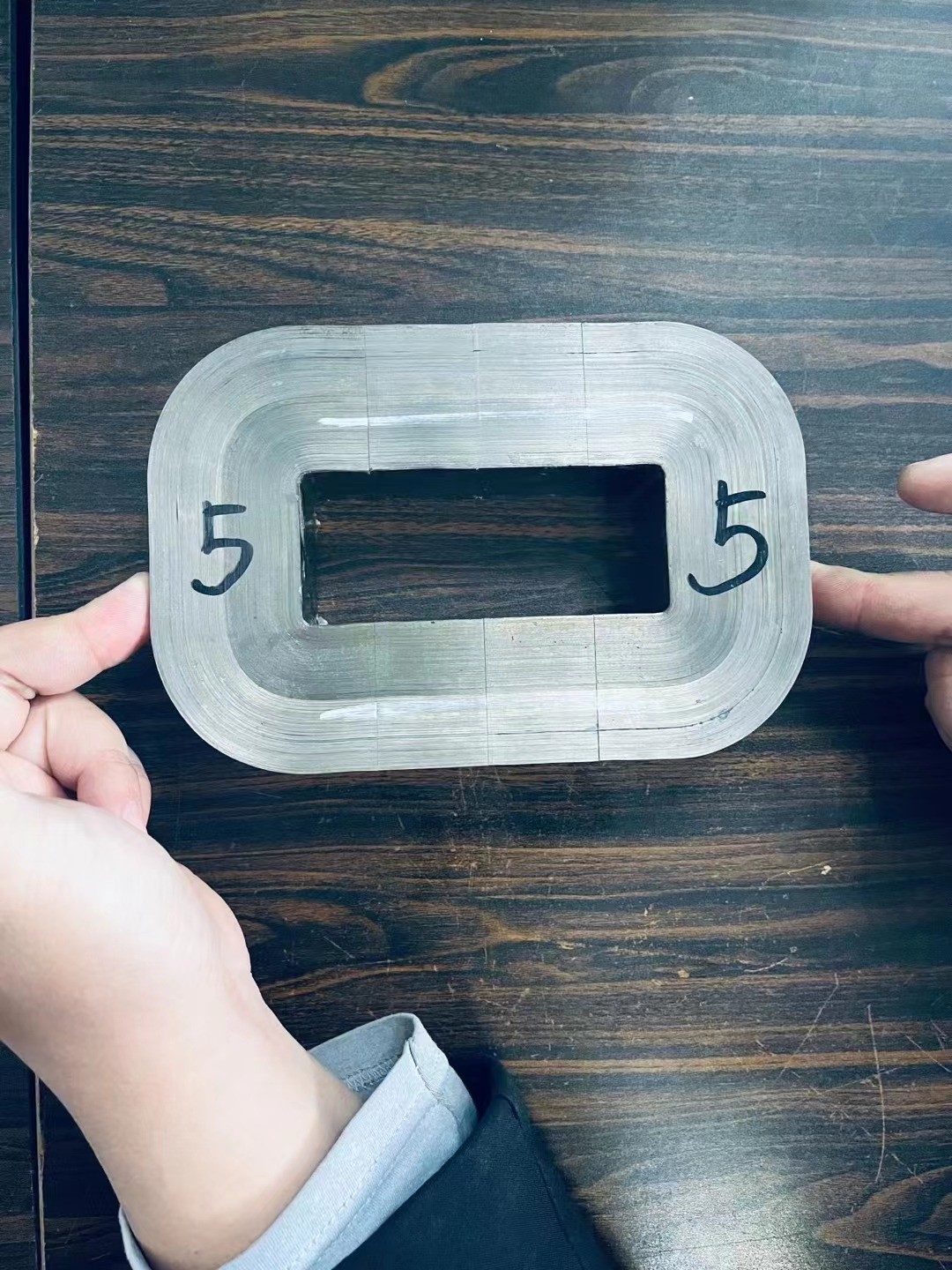

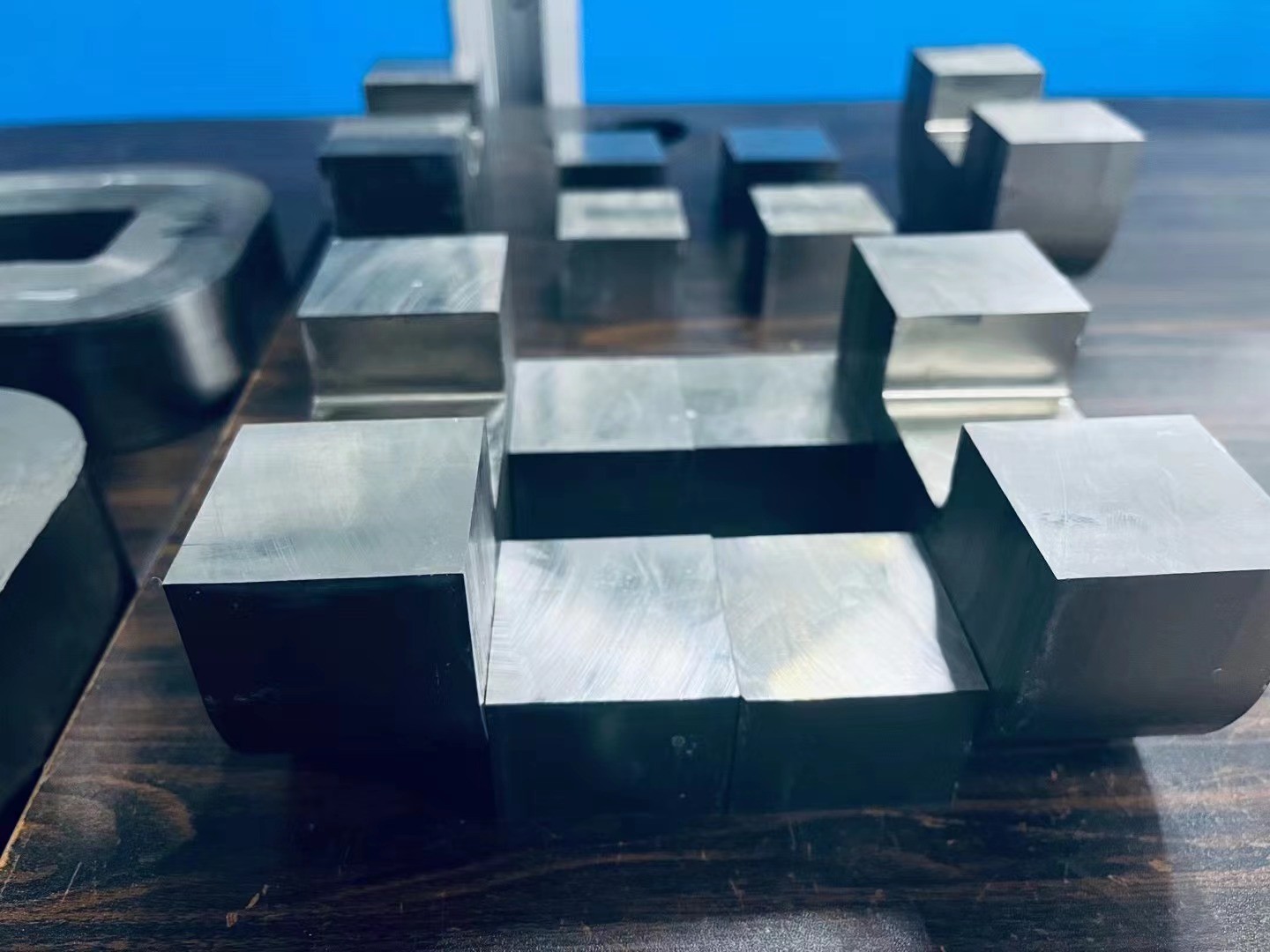

Cutting Effects:

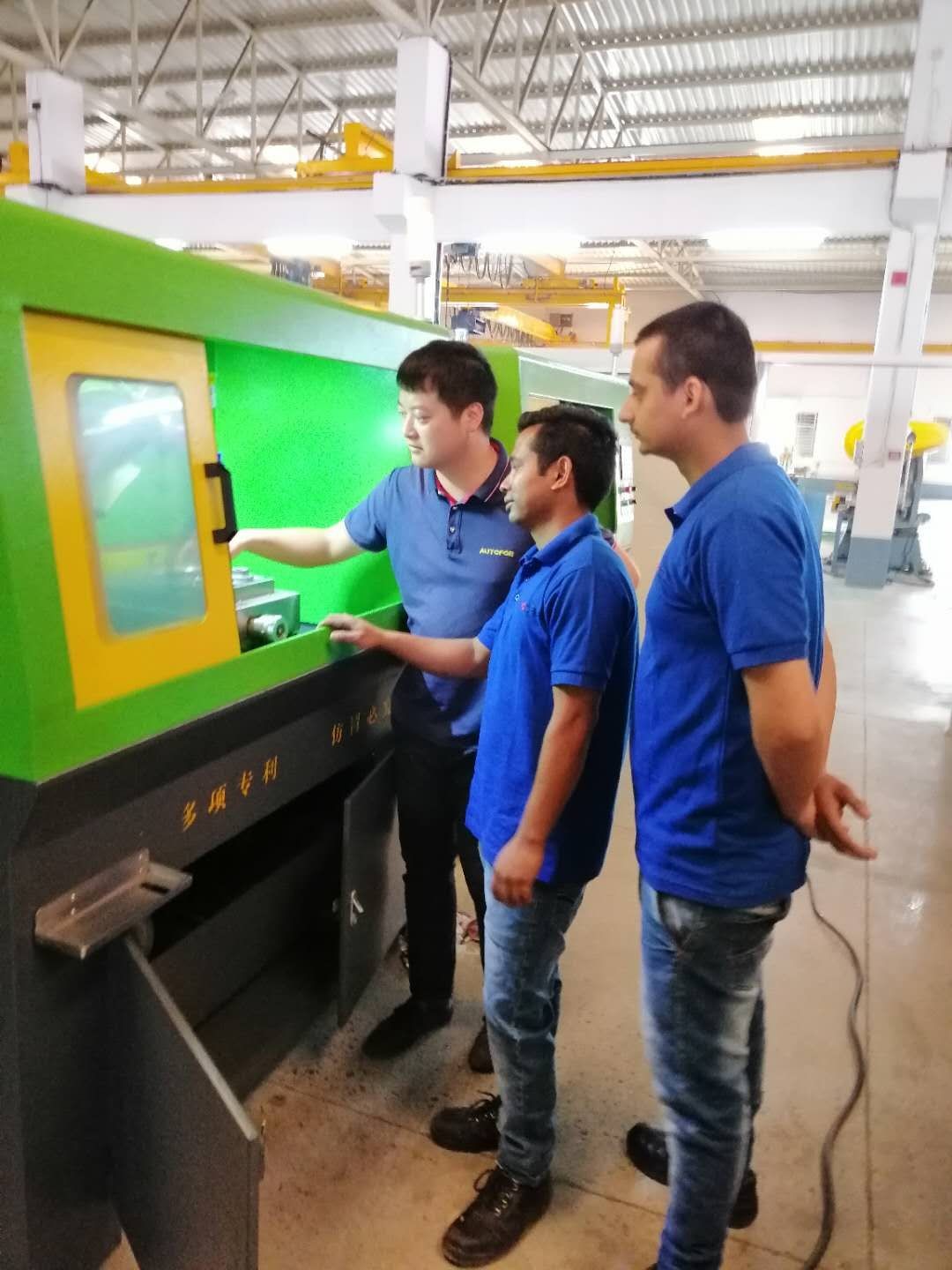

Customer's plant
Since 2017,AUTOFOR was being exported to many magnetic cores cutting machine to Germany,Spain,America,Japan,India ,etc...,and won very good comment from the customers.
Advantages of cutting fluid refrigeration system:
1. Extend the service life of the cutting piece by 10%-30%;
2. Reduce the evaporation of the coolant;
3. Reduce the cut burn of the workpiece and improve the yield;
4. Constant working environment to improve product consistency;
5. Improve the service life and overall stability of the equipment.
Cutting fluid purification system:
The cutting fluid after being treated by AUTOFOR “Cutting Fluid Purification System”:
1. It can reach the state without impurities;
2, the ultra-ideal cutting conditions of the cutting work point, and even achieve the world-class mirror cutting effect;
3, and the cutting fluid is 100% utilized, no waste;
4. Using the equipment purification system, the service life of the cutting fluid is 3-5 times higher than that of the peer, which greatly reduces the cost of use for the customer.
