Place of Origin:	China
Brand Name:	AUTOFOR
Certification:	CE/SGS/ISO90001
Model Number:	AF018

Minimum Order Quantity:	1pcs
Price:	Negotiable
Packaging Details:	wooden/customized
Delivery Time:	15 days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union, MoneyGram
Supply Ability:	1000 pcs/m

Size(LWH):	190014502150（MM）	Main Machine Weight:	1950KG
Cutting Mode:	Horizontal Cutting	Maximum Grinding Wheel:	Φ455mm
Aperture Of Suitable Grinding Wheel:	Φ32MM	Speed:	Adjustable
X-axis Range(MM):	120MM	Feed Rate:	0-1000MM/MIN
Feeding Mode:	Stepping Feed	Push And Cut Mode:	Z-cut/ Y-cut
Water Tank Capacity:	135L	Power Supply:	380V/50HZ 480V/60HZ
Main Motor Power:	11KW	Application:	Amorphous, Nanocrystalline, Ultrafine Crystal, Transformer, Silicon Steel, Ferrosilicon, Aluminium-iron-silicon, Iron-nickel, Iron Powder Core, Beryllium Film, Ferrite
Highlight:	water jet cutting machine , cnc cutting machine

AUTOFOR's Absolute Advantage
ITEM	AUTOFOR ADVANTAGES	AUTOFOR(High version)	Domestic small factory
1	high cutting efficiency	Hummer spindle, spindle speed reaches 4500 without jitter	spindle will move, starting to shake over 3000 rpm
1	high cutting efficiency	High speed, many times of cutting frequency, and multi-knife patent selection	Low speed, low frequency of cutting
2	high accuracy	The accuracy of Japan's aviation-grade bearings and spindles is within 0.02mm.	Did not do these processes;
2	high accuracy	Drive platform and work platform, through the "gantry milling" and "de-stressing" process (AUTOFOR exclusive)	Did not do these processes;
3	equipment quality/working life/function/steady....more strong	Weight:1600kg	Weight:400-800kg
		The steel plate of the drive platform is up to 60mm thick and the cutting platform is up to 40mm thick.	Large platform is generally 10mm steel plate
		International first-line brands, top-level configurations such as Siemens, Honeywell, Schneider, Shanghai Silver, and Raytheon	Domestic small brand
		Extra large spindle with Japanese aviation class bearings	small spindle
		Drive platform and working platform, through the "gantry milling" and "de-stressing" process (Altov exclusive), the accuracy is constant all the year, the life of the use is more than 10 years is no problem	Without doing this process, the accuracy of the cut product is gradually reduced after 1 year, and the more it is cut, the more difficult it is to use.
		Separation of drive and cutting chambers, safety, long life of equipment and accessories	The motor, main shaft and cutting are all in the cutting chamber, the risk of leakage, the life of equipment and accessories is extremely short
4	high quality and good price	Drive platform 60mm steel plate gantry milling, integrated sheet metal cost is more than 4 times higher than its peers	5-15mm steel plate is not used, no gantry milling and stress relief treatment
		Siemens motor in Germany;	Ordinary domestic motor
		Japan Airlines class bearing, φ110mm extra large spindle, the accuracy is within 0.02mm, the cost is 1650USD , 5 times higher than the same industry	Ordinary small spindle φ45-60mm
		International first-line brands, Siemens, Schneider, Raytheon, Honeywell, Taiwan's top silver and other top-level configurations, cost 6-10 times higher than the industry	Domestic small brand
		Buddly spindle seat, two groups weighing up to 120kg	no
		Multi-groove pulley, cost 100USD /PCS, cost 10 times higher than the V-belt	Ordinary triangular leather wheel
		Multi-ditch belt, cost 50USD / PCS, the cost is 6 times higher than the ordinary triangle belt	Ordinary triangle belt
		Gantry milling, "de-stressing", "painting", cost in kilograms	there is no cost for these artwork
5	leading advantages	It has 38 patents, 13 leading Germany and Japan, and 39 domestic counterparts. (Can refer to the patent certificate)	no

Model item	AF012	AF014	AF015	AF018	AF019	ATF171101	CX20
LWH(MM)	190014502150	13509702105	180013502150	125013002100	130012001600	15009602200	10509001250
Main machine weight(KG)	1950	1400	1600	1200	800	1500	300
Machine Power(KW)	13	5.5	10	6.5	5.5	About 12.8	About 5.5
Main Drive Power(KW)	11	4	7.5	5.5	4	11	3
Maximum grinding wheel(MM)	455	305	405	355	355	405	230
Centre Hole(MM)	32	32	32	32	32	32	32
Rotating speed(R/MIN)	0-4700	0-4200	0-4700	0-4700	0-4000	0-4000	0-4000
X-axis range(MM)	460	/	410	400	250	0	190
Y-axis range(MM)	40	20	40	30	30	20	/
Maximum cutting capacity(MM)	∮140	∮90	∮140	∮115	∮120	∮145	∮90
Maximum cutting range (MM)	120	100	120	120	120	140	90
Feed rate mm/min	0-1000	0-1000	0-1000	0-1000	0-1000	0-1000	0-1000
Feeding mode	Stepping feeding	Stepping feeding	Stepping feeding	Stepping feeding	Stepping feeding	Servo feeding	Stepping feeding
Push and cut mode	Y-cut/Y-cut	Z-cut/Y-cut	Z-cut/Y-cut	Z-cut/Y-cut	Z-cut/Y-cut	Y-cut	Y-cut
Cutting mode	horizontal cutting	Vertical cutting	horizontal cutting	horizontal cutting	horizontal cutting	horizontal cutting	horizontal cutting
Water Tank capacity(L)	About 135L	About 65L	About 110L	About 100L	About 70L	About 170L	About 80L

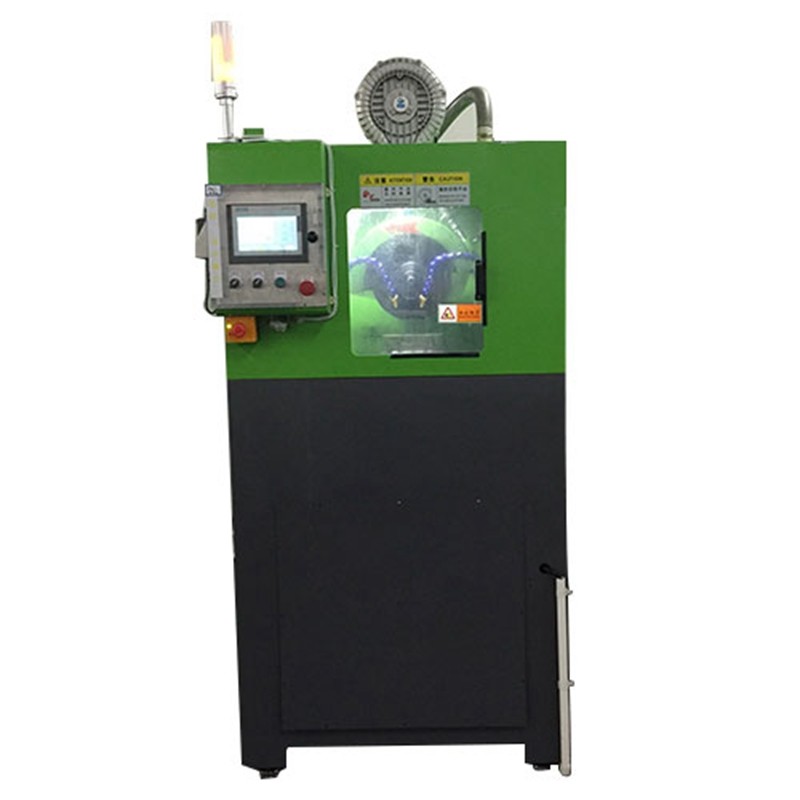

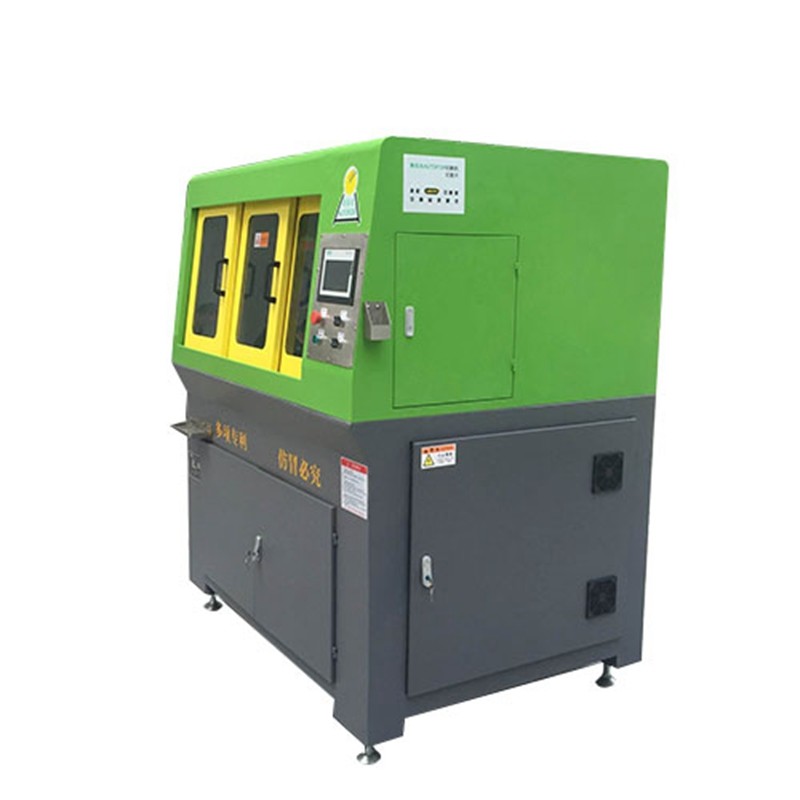

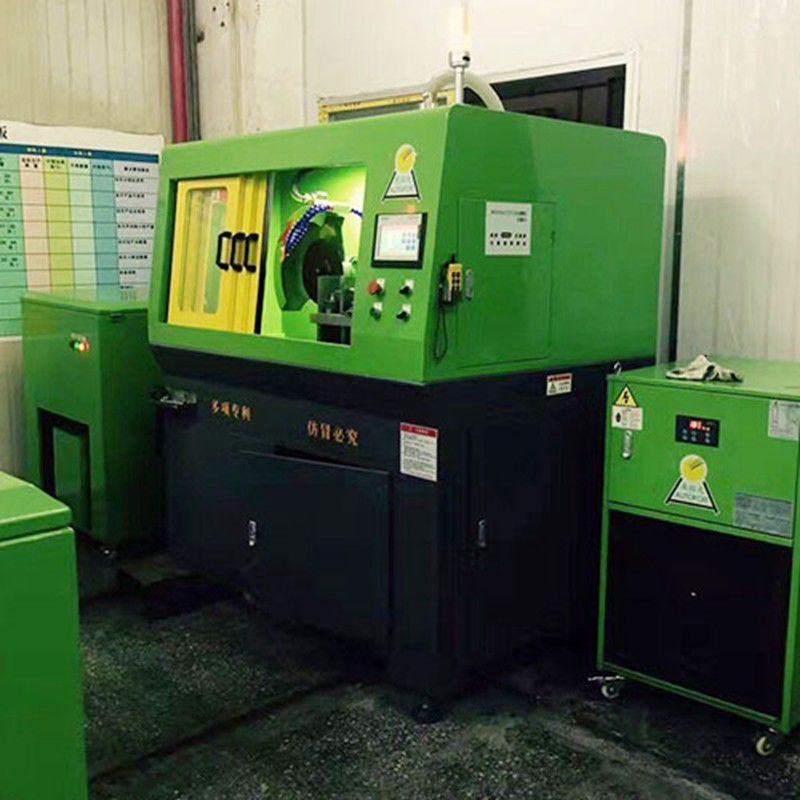

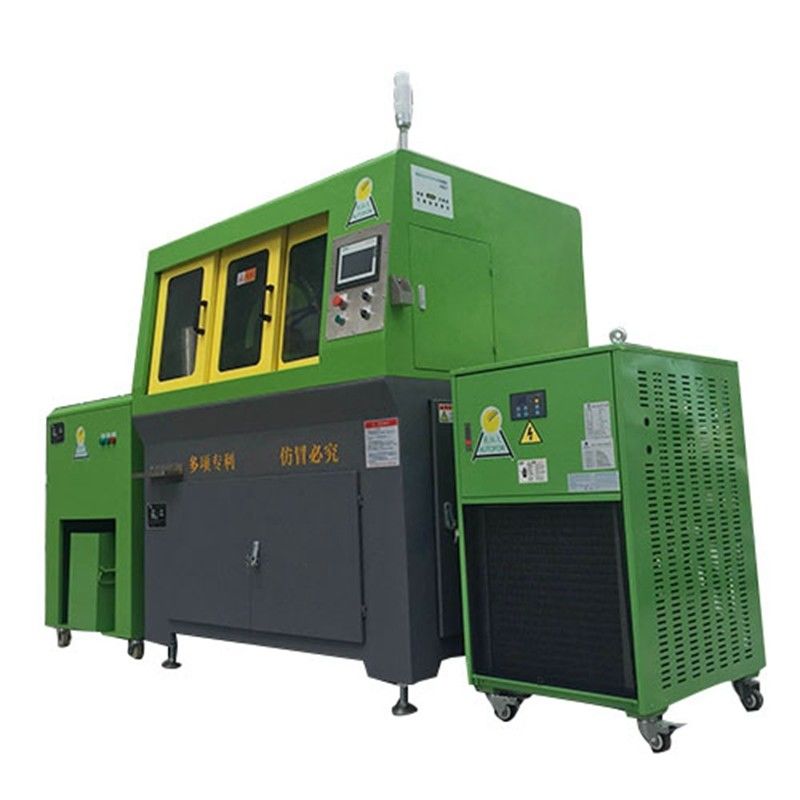

Ultra Micro Crystal Cutting Machine Speed Adjustable Eco - Friendly
