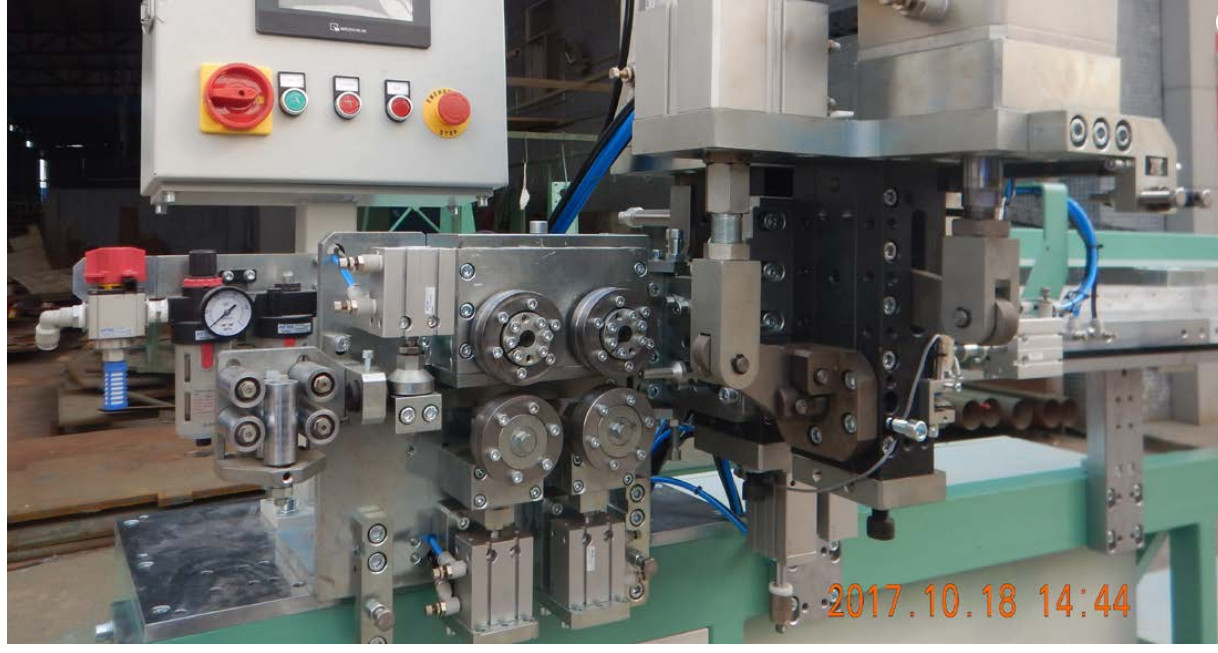

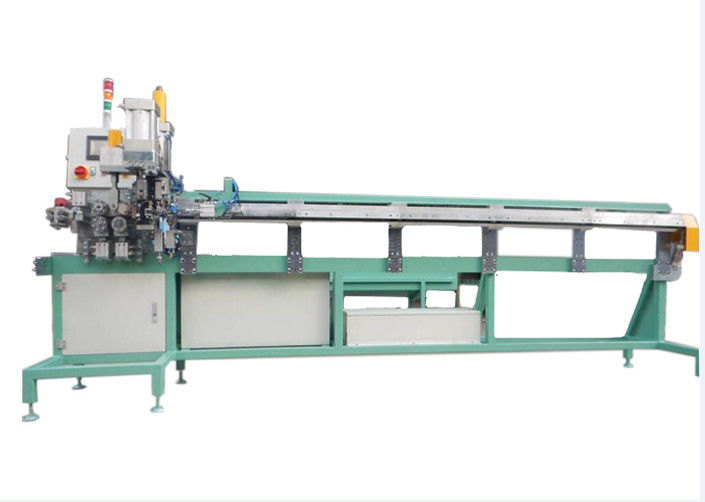

High Speed Steel Wire Cut To Length Machine , Cluth Wire Cutting Machine

                                             High Speed Steel Wire Cut To Length Machine,Cluth wire cutting machine

   This machine is mainly used to cut the length of the steel wire rope of φ1.0～φ3mm (or ~φ4.7mm soft wire).

The main parameters
1. The diameter of the lower wire rope: φ1.5～φ3 mm (or ~φ4.7mm soft wire)
2, the length of the lower line: 150 mm ~ 1800 / 2400 / 3000 / 3600 / 4200 / 4800/5400 / 6000mm adjustable
3. The length accuracy of the lower thread is: 1000±1 mm The maximum error of other lengths is ±2 mm
4, the fastest wire feeding speed: 1200 mm / s
5, the maximum tangent + transplant + flower + flower head detection time: ~ 3 seconds / time
6, the line and transplant, flowering and flower head detection are synchronized, so the speed is almost the same as the line machine.
7, flower head size and shape: according to the information provided by the user

8, wire motor: MHMD082G1U + controller (Panasonic servo motor)
9, the maximum tangential force: 2600 kg (125 cylinders: 4000 kg)
10, the maximum pressure force: 2600 kg
11, the maximum flowering power: 1300 kg
using electric:
1, voltage: single phase 220V
2. Frequency: 50±5 Hz
Using compressed air
1. Air pressure: ≥0.5 MPa
2, the maximum gas consumption: ≤ 4 L / min
13, the total installed capacity: 150W
14. Space occupied after installation: 3400 (2400 models) × 900 × 1650 mm
12, equipment weight: about 1500 kg (2400 models)

13 World Initiatives

     1. The first High Efficiency Fixture

     2. The first Indicating and Alarm System

     3. The first Cutting Fluid Purification System

     4. The first cutting fluid refrigeration system

     5. The first platform wireless intelligent remote control system

     6. The first "Drive and Workspace" Independence

     7. The first "Silly Elephant" Spindle Seat

     8. The first “Hummer” Spindle

     9. The first Fixed Spindle

     10. The first water tank built-in

     11. The first Precision Cutting Machine + Cutting Fluid Refrigeration System + Cutting Fluid Purification System

68 Patents of AUTOFOR:

1. Patent of the working platform of the patented cutting machine for the cooling cycle structure of the cutting machine

2. Patent for Cutting Multifunctional Cutting Machine

3. Patent for thin-walled pipe cutting machine

4. Patent for Push-Cut cutter

5. Patent for cutting fluid purification, energy saving and environmental friendly system

6. Patent for Fast Clamping Fixture

7. Patents for Multi-compartment Separated Cutting Equipment

8. Patent for Intelligent Wireless Control Machining Equipment

9. Patent for built-in cutting fluid tank

10. Patent for Precision Grinding Wheel Cutting Machine for Cutting Fluid FiltrationPurification and Cooling

11. Patent for multi-performance and high environmental protection cutting fluid

12. Patent for Vertical Cutting Machine Patents for Cutting Machines with Adjustable Grinding Wheel Sets

14. Patents for multi-purpose fixture with multi-cutter at the same time Patent for Cutting Device of Workpiece Fixture

16. Patents for Three-Axis Work Platform

17. Patent for Cutting Fluid Collection and Circulation Processing System Patents for two sets of mobile cutting equipment

19. Patents for Intelligent Control Devices of Pump Motor Patent for Cutting Spring Device

21. Patent for High-precision meshless ultra-thin resin and its preparation method

22. Patent for resins with high sharpness, durability and cutting ports of high quality and its preparation method.

23. Patent for Precision Cutting Machine

24. Patent for automatic and efficient fixture for half-cutting of circular workpiece

25. Patent for High Efficiency Fixture with Arbitrary Width Gap for Ring Workpiece

26. Patent for automatic and efficient cutting fixture for cutting circular workpiece at any angle

Cutting effects:
