AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001/UL |
| Model Number: | CX20 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 720*1050*92 | Main Machine Weight: | 300 KG |
|---|---|---|---|
| Cutting Mode: | Horizontal Cutting | Maximum Grinding Wheel: | Φ355MM |
| Aperture Of Suitable Grinding Wheel: | Φ32MM/31.75mm | Maximum RPM: | 4000 R/MIN |
| X-axis Range(MM): | 90MM | Feed Rate: | 0-1000MM/MIN |
| Feeding Mode: | Stepping Feed | Push And Cut Mode: | Z-cut/Y-cut |
| Water Tank Capacity: | 80L | Power Supply: | 380V/50HZ 480V/60HZ |
| Main Motor Power: | 3KW | Machine Power: | 5.5KW |
| Highlight: | steel bar cutting machine,automatic metal cutting machine |
||

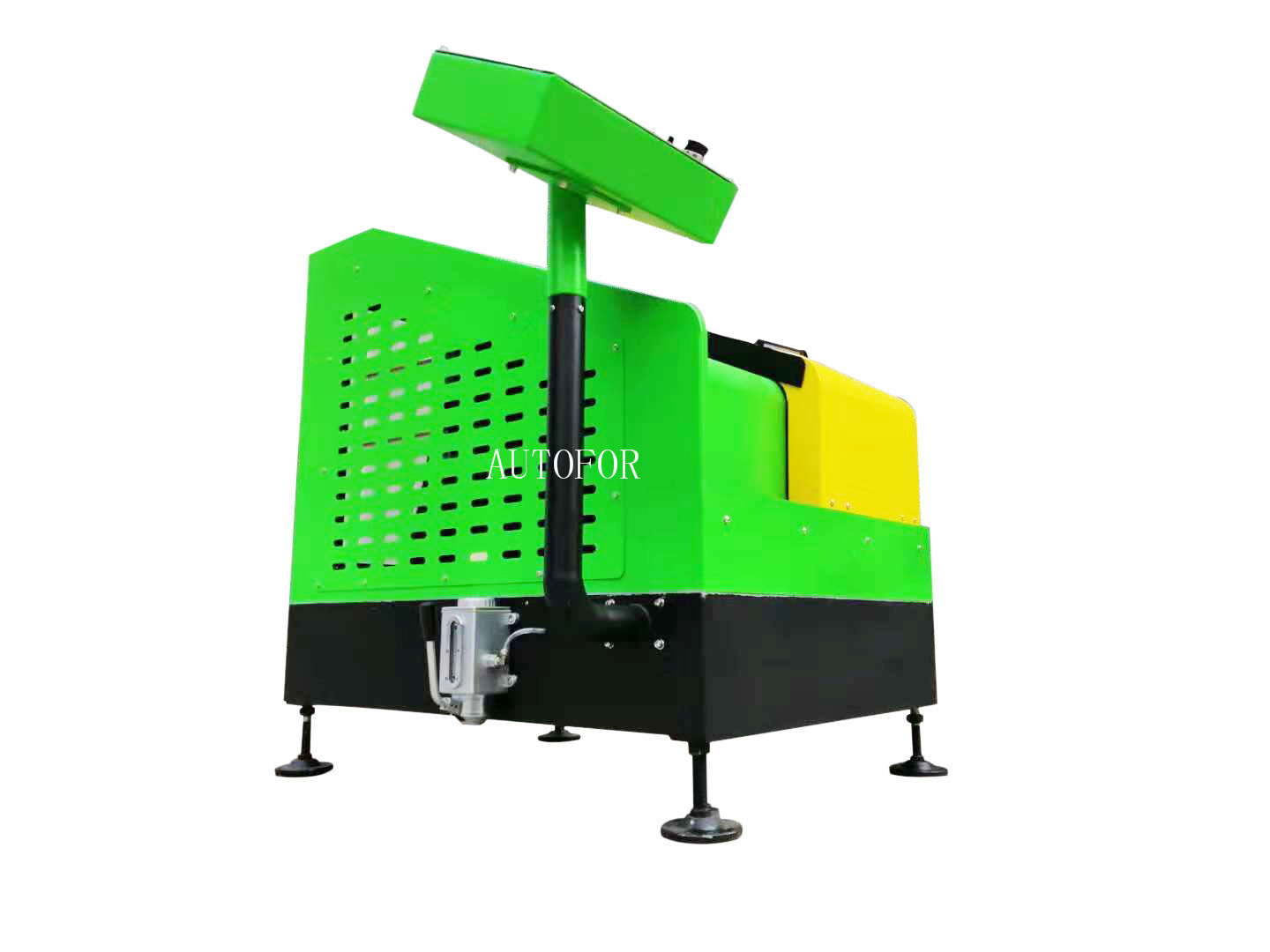

AUTOFOR Precision Metal Cutting Machine For Laboratory Metallogrphic Analysis
CX20 cutting machine is a small high-precision, high-efficiency cutting device, which is suitable for metallographic specimen cutting of various metal and non-metal materials. CX20 cutting machine is easy to use, safe and reliable. It is one of the necessary equipment in the laboratory test of factories and research institutes. .
Design Advantages of AUTOFOR Series Cutting Machines
① Precision cutting machine is divided into upper body and lower body. The corner pillar is 120*120*10(MM) square pillar, and the full seam welding of A3 steel with 2.5MM thickness outsourced.
② The whole installation platform of the equipment is made of 20mm thick steel plate, the driving installation platform and cutting working platform which is made of 2*20MM=40MM thick steel plate. The gantry milling process is adopted to ensure the horizontal accuracy of the lower rack installation platform, and the stress relief treatment is carried out as a whole to ensure that the long-term use of the platform is not deformed.
③ The equipment space is divided into five parts including the motor cabin, the cutting cabin, the maintenance tool cabin, the cutting fluid storage cabin and the power control cabin.
④ Speed adjustment, stroke setting,adjustment of feed speed,automatic compensation function, product counting, intelligent alarm, inner or sweeping cutting.
⑤ Extendable three-pole cutting, where the movement of a workpiece or cut-off wheel in three directions (X, Y, and Z) in a machine can be cut automatically.The machine programming is predefined and can also be done by manual cutters, which can precisely position the workpiece within a few microns of a precision cutting machine
Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end market. Through UL, CE certification in Europe and America and CCC certification in China, it is in the leading position in the industry in terms of automation intelligence and technological innovation. More than 60 patents have been obtained for related cutting machines and fixtures in the exclusive industry, and customized design can also be carried out according to the different technical needs of different customers to achieve the goal of beautiful usage scenarios, and we never stop the pace to inventing and innovating
