AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | AF015 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 1900*1450*2150（MM） | Main Machine Weight: | 1950KG |
|---|---|---|---|
| Power Supply: | 380V/50HZ 480V/60HZ | Main Motor Power: | 11KW |
| Application: | Amorphous, Nanocrystalline, Ultrafine Crystal, Transformer, Silicon Steel, Ferrosilicon, Aluminium-iron-silicon, Iron-nickel, Iron Powder Core, Beryllium Film, Ferrite | Warranty: | 1 Year |
| Usage: | Iron Silicon Aluminum/iron Powder Core/ Magnetic Core | Speed Of Cutting: | Max.4700r/min |
| After-sales Service Provided: | Online Support | Cutting Precision: | ±0.2mm |
| Highlight: | magnetic core cutting machine,cnc cutting machine |
||

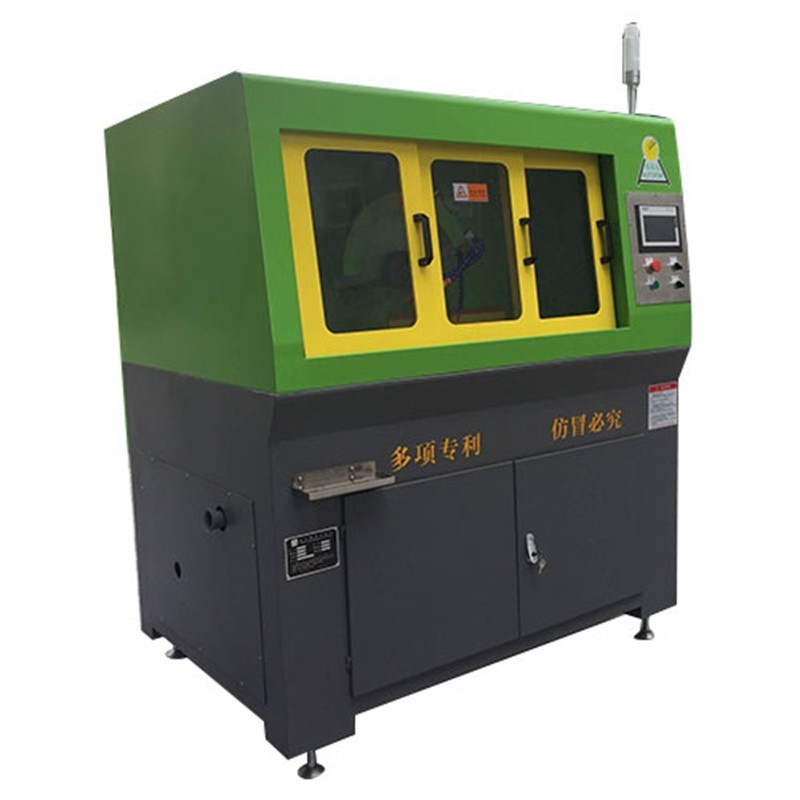

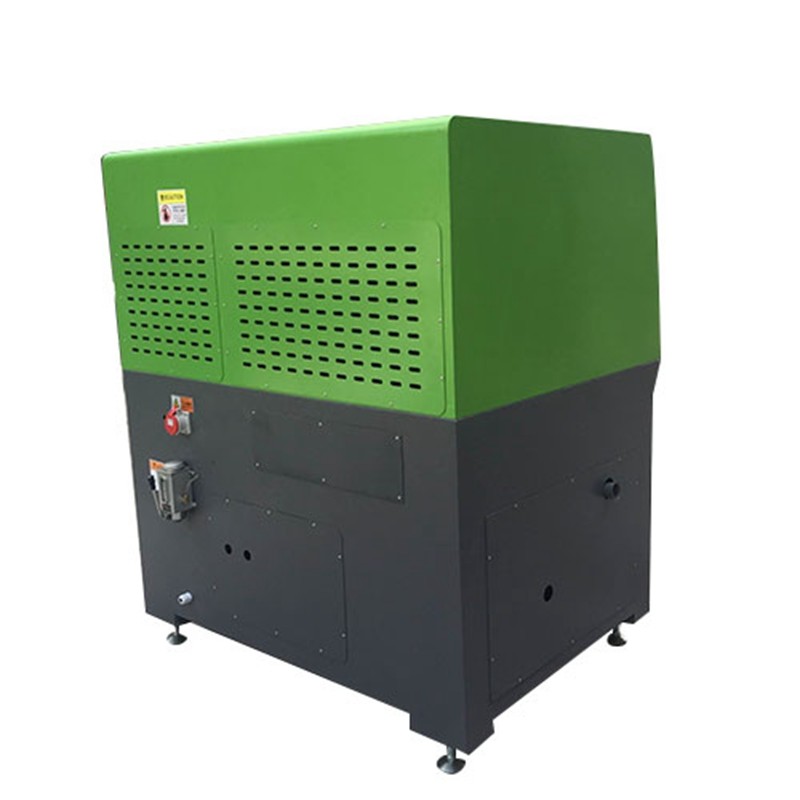

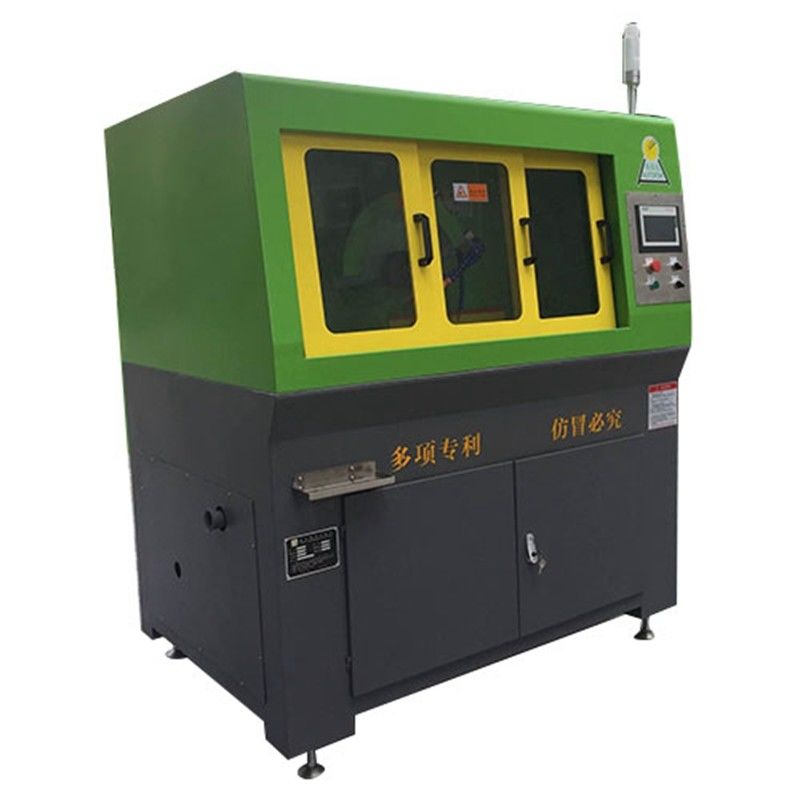

iron powder core cutting machine for magnetic core /Iron silicon aluminum cutting and gapping
AUTOFOR research and develop the iron powder core cutting machine to cut and gap iron powder core and another magnetic cores.
The technolog is advanced in the world.
AUTOFOR amorphous cutting equipment has the following advantages:
1,360° cooling to avoid material burns
2, constant temperature patent technology
3,100% stainless steel material to ensure equipment stability
4, the latest comprehensive shockproof technology
5, configure the AUTOFOR D series special cutting piece to make the cutting more professional
6,25.4 and 32mm bore compatible
7, line speed adjustable compensation
8, cutting port is smooth, smooth, no burn, no burr international first
9, AUTOFOR allows the amorphous cutting machine and silicon steel cutting machine to achieve the best cutting results
AUTOFOR specializes in the field of cutting, the world's first brand of ultra-thin resin cutting sheet, the leader of precision cutting equipment! AUTOFOR is willing to contribute to the development of China's amorphous materials industry!
Application:
amorphous, nanocrystalline, ultrafine crystal, transformer, silicon steel, ferrosilicon, aluminium-iron-silicon, iron-nickel, iron powder core, beryllium film, ferrite, cemented carbide, pipes, bars, ceramics, ferrite, non-ferrous metal materials, tungsten rods, tungsten rods, stainless steel, titanium, glass-epoxy silicon, glass, fiberglass, quartz, molybdenum, tantalum, various high-speed steels, tungsten steel, chromium-plated composite. Precision cutting of gold, titanium alloy, high-speed steel, rail, slider, guide rail, special heat-treated stainless steel, carbon steel, spring steel, die steel, tool steel, bearing steel, golf club, nickel-cadmium alloy, nickel-titanium-cobalt rock, cast iron, cermet, artificial bone, superhard rubber wood material, cobalt-nickel material, carbon fiber, polyamide fiber, composite material and other materials
| Model item | AF012 | AF014 | AF015 | AF018 | AF019 | ATF171101 | CX20 |
| LWH(MM) | 1900*1450*2150 | 1350*970*2105 | 1800*1350*2150 | 1250*1300*2100 | 1300*1200*1600 | 1500*960*2200 | 1050*900*1250 |
| Main machine weight(KG) | 1950 | 1400 | 1600 | 1200 | 800 | 1500 | 300 |
| Machine Power(KW) | 13 | 5.5 | 10 | 6.5 | 5.5 | About 12.8 | About 5.5 |
| Main Drive Power(KW) | 11 | 4 | 7.5 | 5.5 | 4 | 11 | 3 |
| Maximum grinding wheel(MM) | 455 | 305 | 405 | 355 | 355 | 405 | 230 |
| Centre Hole(MM) | 32 | 32 | 32 | 32 | 32 | 32 | 32 |
| Rotating speed(R/MIN) | 0-4700 | 0-4200 | 0-4700 | 0-4700 | 0-4000 | 0-4000 | 0-4000 |
| X-axis range(MM) | 460 | / | 410 | 400 | 250 | 0 | 190 |
| Y-axis range(MM) | 40 | 20 | 40 | 30 | 30 | 20 | / |
| Maximum cutting capacity(MM) | ∮140 | ∮90 | ∮140 | ∮115 | ∮120 | ∮145 | ∮90 |
| Maximum cutting range (MM) | 120 | 100 | 120 | 120 | 120 | 140 | 90 |
| Feed rate mm/min | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Stepping feeding | Stepping feeding | Stepping feeding | Stepping feeding | Stepping feeding | Servo feeding | Stepping feeding |
| Push and cut mode |
Y-cut/Y-cut
|
Z-cut/Y-cut
|
Z-cut/Y-cut
|
Z-cut/Y-cut
|
Z-cut/Y-cut
|
Y-cut
|
Y-cut
|
| Cutting mode | horizontal cutting | Vertical cutting | horizontal cutting | horizontal cutting | horizontal cutting | horizontal cutting | horizontal cutting |
| Water Tank capacity(L) | About 135L | About 65L | About 110L | About 100L | About 70L | About 170L | About 80L |
3.Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end market. Through UL, CE certification in Europe and America and CCC certification in China, it is in the leading position in the industry in terms of automation intelligence and technological innovation. More than 60 patents have been obtained for related cutting machines and fixtures in the exclusive industry, and customized design can also be carried out according to the different technical needs of different customers to achieve the goal of beautiful usage scenarios, and we never stop the pace to inventing and innovating
Customer's plant:
Since 2017,AUTOFOR was being exported to many magnetic cores cutting machine to Germany,Spain,America,Japan,India ,etc...,and won very good comment from the customers.
※Fifteen Advantages of Craftsmanship
Advantages of cutting fluid refrigeration system:
1. Extend the service life of the cutting piece by 10%-30%;
2. Reduce the evaporation of the coolant;
3. Reduce the cut burn of the workpiece and improve the yield;
4. Constant working environment to improve product consistency;
5. Improve the service life and overall stability of the equipment.
Cutting fluid purification system:
The cutting fluid after being treated by AUTOFOR “Cutting Fluid Purification System”:
1. It can reach the state without impurities;
2, the ultra-ideal cutting conditions of the cutting work point, and even achieve the world-class mirror cutting effect;
3, and the cutting fluid is 100% utilized, no waste;
4. Using the equipment purification system, the service life of the cutting fluid is 3-5 times higher than that of the peer, which greatly reduces the cost of use for the customer.
