AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | AF012 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 1155*940*1680 MM | Main Machine Weight: | 420KG |
|---|---|---|---|
| Cutting Mode: | Horizontal Cutting | Maximum Grinding Wheel: | Φ205MM |
| Aperture Of Suitable Grinding Wheel: | Φ32MM | Maximum RPM: | 4000 R/MIN |
| X-axis Range(MM): | Φ90MM | Feed Rate: | 0-1000MM/MIN |
| Feeding Mode: | Stepping Feed | Push And Cut Mode: | Z-cut |
| Water Tank Capacity: | 55L | Power Supply: | 220V/50HZ 480v/60HZ |
| Main Motor Power: | 11KW | Machine Power: | 12.8KW |
| Highlight: | tube cutting machine,pipe profile cutting machine |
||

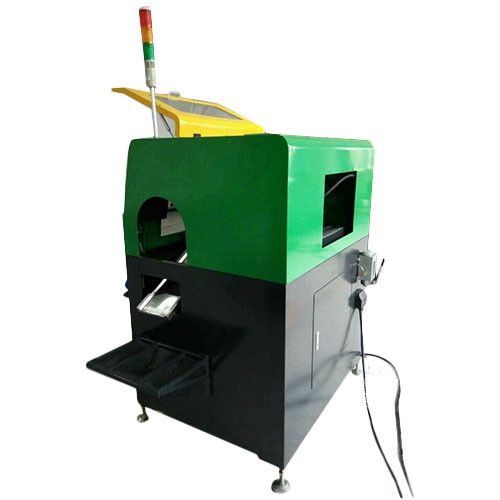

CNC ss pipe cutting machine for stainless steel USB interface
AUTOFOR carefully developed for the market, USB TYPE-C special high-precision automatic cutting machine, with computer program control, user-friendly operation interface, high cutting precision, precise micro-adjustment, good incision quality, automatic feeding, greatly saving labor Cost and double the efficiency of work.
AUTOFOR began researching USB TYPE-C high-precision fully automatic cutting equipment from September 2015, mainly to solve the problem of cutting precision and cutting efficiency for the supplier of Apple Iphone.The Apple Iphone supplier requires that each USB has a cutting accuracy of less than 5 filaments. It cannot be seen with burrs or draping with the naked eye. Another high-end requirement for the cutting machine is the verticality requirement of the product. Within 1 wire. This requirement is difficult to meet for ordinary equipment. The work done by Alofo AUTOFOR is not only to meet the requirements, but to strive for excellence and continuously improve the comprehensive competitiveness of the market.
Features:
1. The overall structure is reasonable and compact, and the good design layout makes the operation of the personnel more simple and quick.
2. Imported precision guide rails and imported bearings are used for the important parts of the machine, which guarantees the long-term operation of the equipment.
3. equipped with Alofo AUTOFOR special cutting wheel, can cut stainless steel, copper, all kinds of alloy steel and other materials.
4. equipped with USB special clamping tool, can be cut together with multiple roots, greatly improving the cutting efficiency.
5. the material port after precision cutting, can achieve very high surface finish and no burrs and no burn black mouth.
6. ATF-20 good human-machine interface, each function at a glance, easy to operate.
7. using PLC integrated controller, the line is simple, easy to maintain.
8. Equipped with Altov AUTOFOR bar special cutting fluid to ensure that the workpiece and cutting piece are not burned, large water cooling and water injection, and add "LUBRITA" special coolant developed by AUTOFOR to ensure that the cutting port is not burned, burr-free, no batch front .
Cutting effects:
| Model Item | High-end Version | Standard Version | ||
| USB001 | AF017 | USB001 | AF017 | |
| Shape size (length * width * height)Without foot cup(mm) | 1155*940*1680 | 720*1050*920 | 1155*940*1680 | 845*1150*1150 |
| Main machine weight(KG) | 750 | 380 | 550 | 380 |
| Machine power(KW) | About 12.8 | About 5.5 | About 2.8 | About 1.9 |
| Main drive power(KW) | 11 | 3 | 1.5 | 0.55 |
| Maximum grinding wheel(mm) | 205 | 230 | 205 | 230 |
| Center hole(mm) | 32 | 32 | 25.4 | 25.4 |
| Rotating speed(r/min) | 0-4000 | 3500 | 0-4000 | 3500 |
| Maximum cutting capacity(mm) | ∮145 | ∮90 | ∮58 | ∮45 |
| Maximum cutting range(mm) | 140 | 90 | 150 | 130 |
| cutting speed | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Servo feeding | Stepping feeding | Servo feeding | Servo feeding |
| Push and cut mode | Z-cut | Z-cutg | Z-cut | Z-cut |

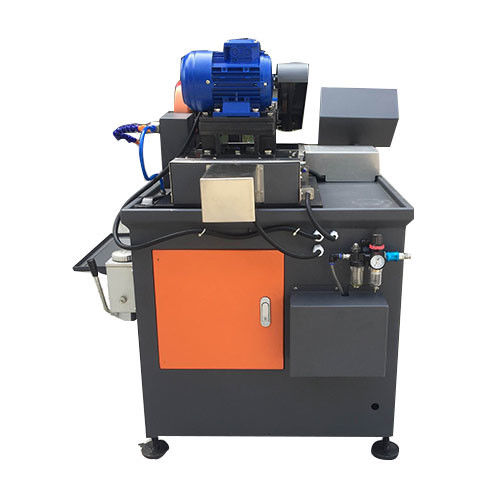

3.Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end market. Through UL, CE certification in Europe and America and CCC certification in China, it is in the leading position in the industry in terms of automation intelligence and technological innovation. More than 60 patents have been obtained for related cutting machines and fixtures in the exclusive industry, and customized design can also be carried out according to the different technical needs of different customers to achieve the goal of beautiful usage scenarios, and we never stop the pace to inventing and innovating
68 Patents of AUTOFOR:
1. Patent of the working platform of the patented cutting machine for the cooling cycle structure of the cutting machine
2. Patent for Cutting Multifunctional Cutting Machine
3. Patent for thin-walled pipe cutting machine
4. Patent for Push-Cut cutter
5. Patent for cutting fluid purification, energy saving and environmental friendly system
6. Patent for Fast Clamping Fixture
7. Patents for Multi-compartment Separated Cutting Equipment
8. Patent for Intelligent Wireless Control Machining Equipment
9. Patent for built-in cutting fluid tank
10. Patent for Precision Grinding Wheel Cutting Machine for Cutting Fluid FiltrationPurification and Cooling
11. Patent for multi-performance and high environmental protection cutting fluid
12. Patent for Vertical Cutting Machine Patents for Cutting Machines with Adjustable Grinding Wheel Sets
14. Patents for multi-purpose fixture with multi-cutter at the same time Patent for Cutting Device of Workpiece Fixture
16. Patents for Three-Axis Work Platform
17. Patent for Cutting Fluid Collection and Circulation Processing System Patents for two sets of mobile cutting equipment
19. Patents for Intelligent Control Devices of Pump Motor Patent for Cutting Spring Device
21. Patent for High-precision meshless ultra-thin resin and its preparation method
22. Patent for resins with high sharpness, durability and cutting ports of high quality and its preparation method.
23. Patent for Precision Cutting Machine
24. Patent for automatic and efficient fixture for half-cutting of circular workpiece
25. Patent for High Efficiency Fixture with Arbitrary Width Gap for Ring Workpiece
26. Patent for automatic and efficient cutting fixture for cutting circular workpiece at any angle
27. ……
