AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | TYPC |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 1155*940*1680 MM | Main Machine Weight: | 420KG |
|---|---|---|---|
| Cutting Mode: | Horizontal Cutting | Maximum Grinding Wheel: | Φ205MM |
| Aperture Of Suitable Grinding Wheel: | Φ32MM | Maximum RPM: | 4000 R/MIN |
| X-axis Range(MM): | Φ90MM | Feed Rate: | 0-1000MM/MIN |
| Feeding Mode: | Stepping Feed | Push And Cut Mode: | Z-cut |
| Water Tank Capacity: | 55L | Power Supply: | 220V/50HZ 480v/60HZ |
| Main Motor Power: | 11KW | Machine Power: | 12.8KW |
| Highlight: | pipe profile cutting machine,automated pipe cutter |
||

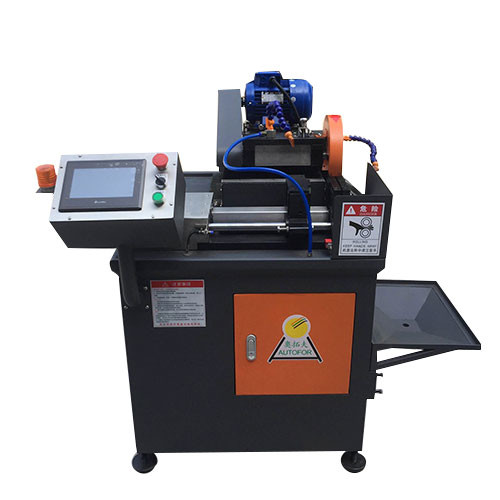

Full automatic pipe cutting machine for stainless steel USB type-c
AUTOFOR carefully developed stainless steel USB interface precision cutting equipment, which can cut more than 10 pieces together, high cutting efficiency, multi-selection of cutting equipment functions, can be customized according to customer's production and process requirements. Stainless steel pipe fittings are free of burns and burrs. All kinds of stainless steel products and stainless steel products are made to reach the world's top art level.
Features:
1. The precision is ± 0.03mm.
2. the cutting port has no burrs and black mouth burns, ensuring the cutting quality.
3. can automatically feed, greatly saving labor costs.
4. can be bundled together to cut, greatly improving work efficiency.
5. After cutting,the port is same as be polished,so no need polishing again.
| Model Item | High-end Version | Standard Version | ||
| USB001 | AF017 | USB001 | AF017 | |
| Shape size (length * width * height)Without foot cup(mm) | 1155*940*1680 | 720*1050*920 | 1155*940*1680 | 845*1150*1150 |
| Main machine weight(KG) | 750 | 380 | 550 | 380 |
| Machine power(KW) | About 12.8 | About 5.5 | About 2.8 | About 1.9 |
| Main drive power(KW) | 11 | 3 | 1.5 | 0.55 |
| Maximum grinding wheel(mm) | 205 | 230 | 205 | 230 |
| Center hole(mm) | 32 | 32 | 25.4 | 25.4 |
| Rotating speed(r/min) | 0-4000 | 3500 | 0-4000 | 3500 |
| Maximum cutting capacity(mm) | ∮145 | ∮90 | ∮58 | ∮45 |
| Maximum cutting range(mm) | 140 | 90 | 150 | 130 |
| cutting speed | 0-1000 | 0-1000 | 0-1000 | 0-1000 |
| Feeding mode | Servo feeding | Stepping feeding | Servo feeding | Servo feeding |
| Push and cut mode | Z-cut | Z-cutg | Z-cut | Z-cut |
3.Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end market. Through UL, CE certification in Europe and America and CCC certification in China, it is in the leading position in the industry in terms of automation intelligence and technological innovation. More than 60 patents have been obtained for related cutting machines and fixtures in the exclusive industry, and customized design can also be carried out according to the different technical needs of different customers to achieve the goal of beautiful usage scenarios, and we never stop the pace to inventing and innovating
Cutting effects:
68 Patents of AUTOFOR:
1. Patent of the working platform of the patented cutting machine for the cooling cycle structure of the cutting machine
2. Patent for Cutting Multifunctional Cutting Machine
3. Patent for thin-walled pipe cutting machine
4. Patent for Push-Cut cutter
5. Patent for cutting fluid purification, energy saving and environmental friendly system
6. Patent for Fast Clamping Fixture
7. Patents for Multi-compartment Separated Cutting Equipment
8. Patent for Intelligent Wireless Control Machining Equipment
9. Patent for built-in cutting fluid tank
10. Patent for Precision Grinding Wheel Cutting Machine for Cutting Fluid FiltrationPurification and Cooling
11. Patent for multi-performance and high environmental protection cutting fluid
12. Patent for Vertical Cutting Machine Patents for Cutting Machines with Adjustable Grinding Wheel Sets
14. Patents for multi-purpose fixture with multi-cutter at the same time Patent for Cutting Device of Workpiece Fixture
16. Patents for Three-Axis Work Platform
17. Patent for Cutting Fluid Collection and Circulation Processing System Patents for two sets of mobile cutting equipment
19. Patents for Intelligent Control Devices of Pump Motor Patent for Cutting Spring Device
21. Patent for High-precision meshless ultra-thin resin and its preparation method
22. Patent for resins with high sharpness, durability and cutting ports of high quality and its preparation method.
23. Patent for Precision Cutting Machine
24. Patent for automatic and efficient fixture for half-cutting of circular workpiece
25. Patent for High Efficiency Fixture with Arbitrary Width Gap for Ring Workpiece
26. Patent for automatic and efficient cutting fixture for cutting circular workpiece at any angle
27. ……
