AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | SGS/CE |
| Model Number: | KC35 |
| Minimum Order Quantity: | 100 pcs |
| Price: | Negotiable |
| Packaging Details: | carton,wooden,customized |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300000 pcs/m |
| Material: | Resin Bond | Color: | Red/black/green |
|---|---|---|---|
| Outer Diameter: | 22/35/38/40/50/76/90/110/130 | Thichness: | 0.1/0.125/0.2/0.3/customized |
| Inner Diameter: | 1.8/3.2/4/6/8/12.7/16/2225.4/31.75/32/customized | Usage: | Gapping,grooving,slotting,milling And Cutting. |
| Highlight: | aluminum oxide cutting wheel,metal cut off disc |
||

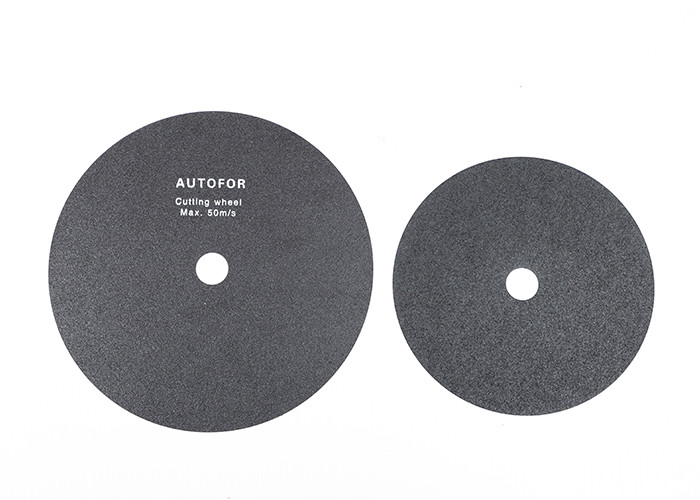

Precision cutting disc to slot the collet chuck/pen nib/Copper needle
Usage:The cutting disc is mainly used for slotting and cutting of metal materials such as SKD-11 steel, carbon steel, high speed steel, stainless steel, alloy steel, tool steel, non-ferrous metal, cast iron, etc. It is also used for glass, ceramic, plastic, quartz, crystal, Milling and cutting of non-metallic materials such as corals, gems, resistors, charcoal, bakelite, PCB boards, shells, etc.
Features:
(1) It has thin thickness and high precision,which enables to be used for precise gapping,grooving,slotting,milling and cutting.
(2) It is suitable for precise cutting of precious materials.
(3) It has very high strength.
(4) It can be cut without bad odor and dust.
| Specifications of slotting/slotting/milling precision Cut-off Wheel(size:mm) | ||||
| Model | OD | THK RANGE | ID | Line speed(m/s) |
| KC22 | 22 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC35 | 35 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC38 | 38 | ≥0.1 | 1.8/3.2 | 50-80 |
| KC41 | 40 | ≥0.1 | 1.8/3.2/4/6 | 50-80 |
| KC50 | 50 | ≥0.1 | 3.2/4/6/8 | 50-80 |
| KC76 | 76 | ≥0.125 | 4/6/8/10/12.7/16/22/25.4 | 50-80 |
| KC90 | 90 | ≥0.2 | 6/8/10/12.7/16/22/25.4 | 50-80 |
| KC110 | 110 | ≥0.3 | 6/8/10/12.7/16/22/25.4/31.75/32 | 50-80 |
| KC130 | 130 | ≥0.3 | 6/8/10/12.7/16/22/25.4/31.75/32 | 50-80 |
Precision Cut-off Wheel Series
AUTOFOR, as a global precision cutting enterprise, has obtained more than 10 invention patents, 600 formulations and 30,000 specifications. Furthermore,resin grinding wheel can achieve 0.125 mm,which touched the world's thinnest record, and the entire line of products through SGS environmental friendly certification.We can also customize the formula according to the personal needs of customers.
Company Profile
AUTOFOR Company,the craftsman Enterprise leading global exquisite "Precision Cutting Technology" !
AUTOFOR Company, the promoter and the navigator of "Precision Cutting Technology"!
AUTOFOR Company, the industry standard setter and the developer of "Precision Cutting Equipment"!
AUTOFOR Company, the successor and the specialist of "Precision Resin Cutting wheel"!
AUTOFOR Company,the customizer and developer of “ Special Cutting Fluid”!
AUTOFOR Company,the designer and user of “Special Fixture”!
AUTOFOR Company,pledges to specialize in the Precision Cutting Technology for 100 years!
cutting effects:
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
