AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | SGS/CE |
| Model Number: | WWQ305 |
| Minimum Order Quantity: | 100 pcs |
| Price: | Negotiable |
| Packaging Details: | carton,wooden,customized |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300000 pcs/m |
| Material: | Resin Bond | Color: | Red/black/green |
|---|---|---|---|
| Application: | Ferrous/non-ferrous | Feature: | Sharpen/wear Resistance |
| Highlight: | aluminum oxide cutting wheel,metal cutting discs |
||

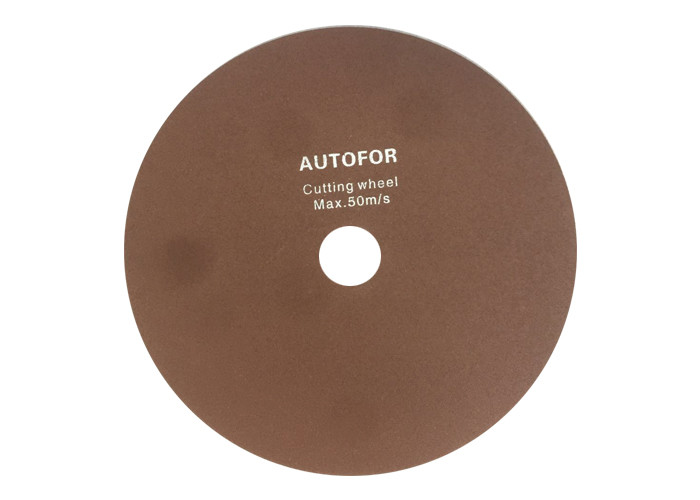

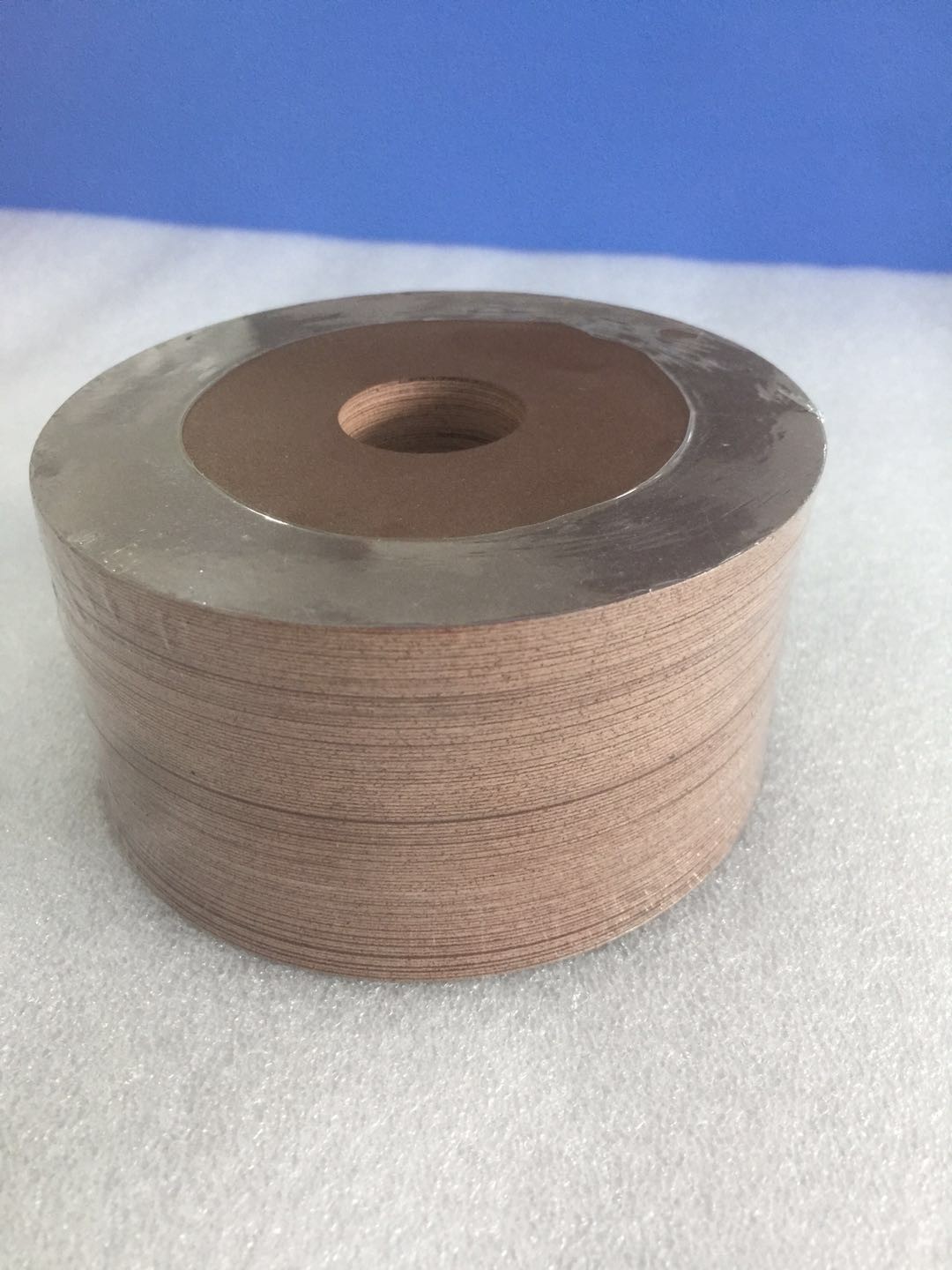

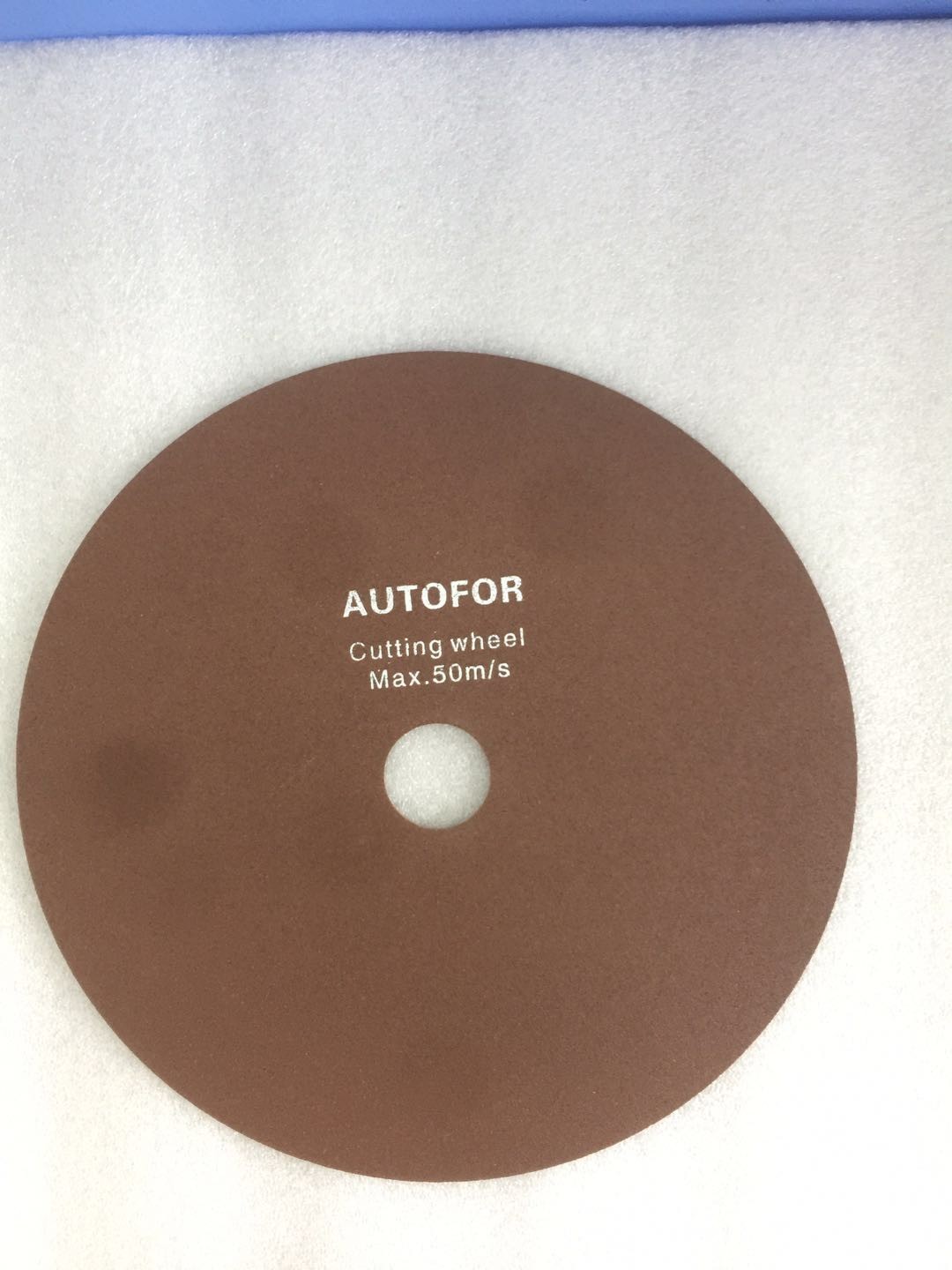

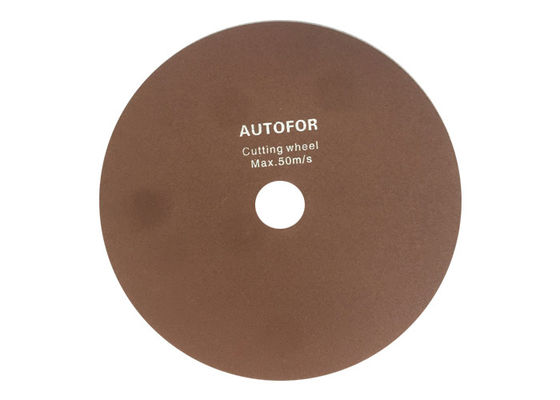

Super thin cutting wheel for Copper ear/Copper terminals/Collet
AUTOFOR super thin cutting wheel enables to cut/slot/gap the metal,like copper ear,copper terminals,collet.
The precision is very high.
Autofor divides metal hardness into four categories.
1.HRC <30 2.HRC 30-50 3.HRC50-60 4.HRC>60.
At the same time, the cutting wheel has four kinds of hardnesses PB>MB>LB>KB, suitable for various metallographic specimens cutting,
HRC40-50(non-heat treated steel):Carbon Steel,Stainless Steel,S-C Series Tool Steel,SK Series,SS Series Mild Steel.
HRC50-60(heat treated steel-alloy sool steel):SKS,SKT,SK3,SUP,S45C,SCM415,SNCM439.
HRC58-64(hard heat treated steel):Special Alloy Steel,SKD,SKH,SKS3,SCM415,SACM,SNCM439.
HRC40-63(cast iron FC and forged cast iron):Cotton Series.
Advantages:
1. Strong strength and high safety.
2. good wear resistance (the general market grinding wheel hardness is HRA50-70, this product can reach HRA100 or more).
3. Strong sharpness, can improve work efficiency, etc.
4. The grinding wheel is straight, so the material to be cut is straight, no material is wasted.
Precision Cut-off Wheel for ferrous/non-ferrous(size)
| Model | OD(mm) | THK(mm) | ID(mm) | Line speed (m/s) |
| WWQ115 | 115 | ≥0.14 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ125 | 125 | ≥0.15 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ150 | 150 | ≥0.25 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ180 | 180 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ255 | 255 | ≥0.6 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ355 | 355 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ405 | 405 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ455 | 455 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ510 | 510 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
Cutting Effects:
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
