AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | SGS/CE |
| Model Number: | LS255 |
| Minimum Order Quantity: | 100 pcs |
| Price: | Negotiable |
| Packaging Details: | carton,wooden,customized |
| Delivery Time: | 15 days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 300000 pcs/m |
| Material: | Resin Bond | Color: | Red/black/green |
|---|---|---|---|
| Outer Diameter: | 180/ Customized | Thichness: | 0.5/0.7customized |
| Inner Diameter: | 12.7/25.4/31.75/32/customized | Application: | Metal&metallographic |
| Highlight: | resin cut off wheel,aluminum oxide cutting wheel |
||

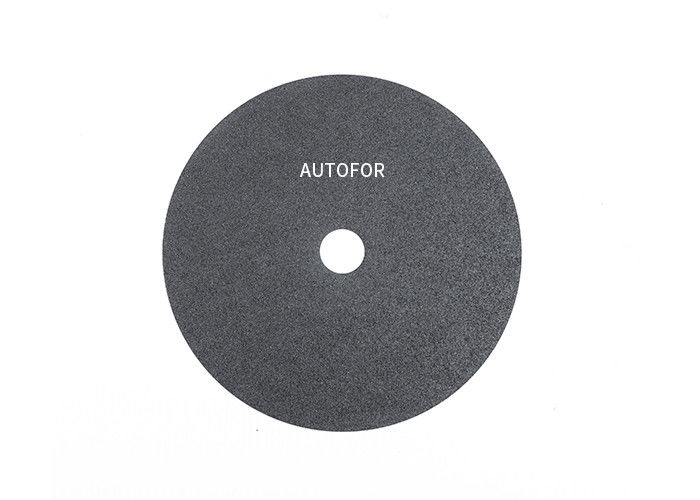

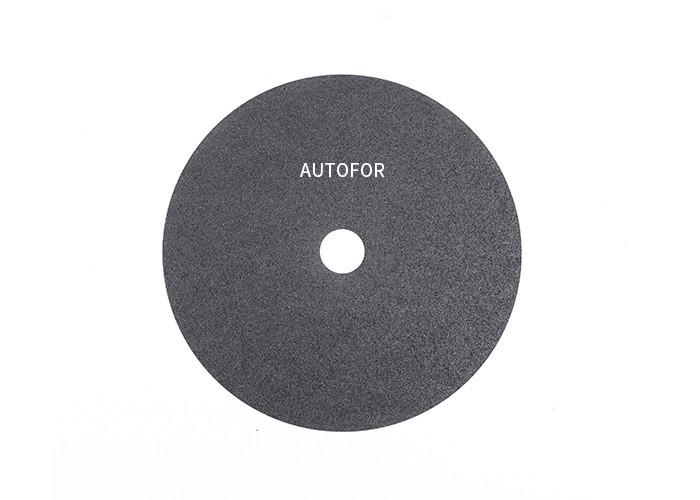

AUTOFOR precision Metallographic cutting disc for Crankshaft/guide/slider/High speed steel
To cut the Crankshaft/guide/slider/High speed steel,no burn,no burr.
Advantages:
1. Strong strength and high safety.
2. good wear resistance (the general market grinding wheel hardness is HRA50-70, this product can reach HRA100 or more).
3. Strong sharpness, can improve work efficiency, etc.
4. The grinding wheel is straight, so the material to be cut is straight, no material is wasted and the material to be cut can be dispensed with.
Various metal/alloy/metallographic/non-metal Precision Cut-off Wheel(size)
| Model | OD(mm) | THK(mm) | ID(mm) | Line speed (m/s) |
| WWQ115 | 115 | ≥0.14 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ125 | 125 | ≥0.15 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ150 | 150 | ≥0.25 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ180 | 180 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| WWQ205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ255 | 255 | ≥0.6 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| WWQ355 | 355 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ405 | 405 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ455 | 455 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| WWQ510 | 510 | ≥1.8 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
AUTOFOR has developed various metal/alloy/metallographic/non-metallic cutting cut-off Wheel for more than 30,000 customers worldwide, which are widely used in non-ferrous metals and non-ferrous metals, such as stainless steel, carbon steel, spring steel, die steel, tool steel, bearing steel, high-speed steel, cast iron, cermet, tungsten steel, tungsten rod, tungsten wire and tungsten sheet treated alloy metals such as quenched parts, chrome-plated alloys, titanium alloys, nickel-cadmium alloys, nickel-titanium cobalt and other hard alloys and super-hard alloys.The products include a series of low, medium and high hardness materials, such as rails, sliders, guide rails, golf clubs, various machine tool die accessories, etc.
Non-metallic materials include ceramics, glass epoxy silicon, glass, fiberglass reinforced
plastics, quartz, rock, artificial bone, superhard glue wood, cobalt-nickel materials, carbon
fibers, polyamide fibers, composite materials and other materials.
It is suitable for cutting, slotting, milling and grooving, metallographic analysis of high-precision cutting.
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
Cutting Effects:
