AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | CX305 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | carton/wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000000 pcs/m |
| Material: | Resin | Product Name: | Cutting Disc |
|---|---|---|---|
| Color: | Red/black/green | Application: | Amorphous, Nanocrystalline, Ultrafine Crystalline, Silicon Steel, Silicon Steel, Beryllium Film, Transformer, Ferrite, Ferrosilicon, Ferronickel , Ferrosilicon-aluminium |
| Size: | Customized | Max Speed: | 4700 R/min |
| Highlight: | metal cut off wheel,abrasive cut off wheel |
||

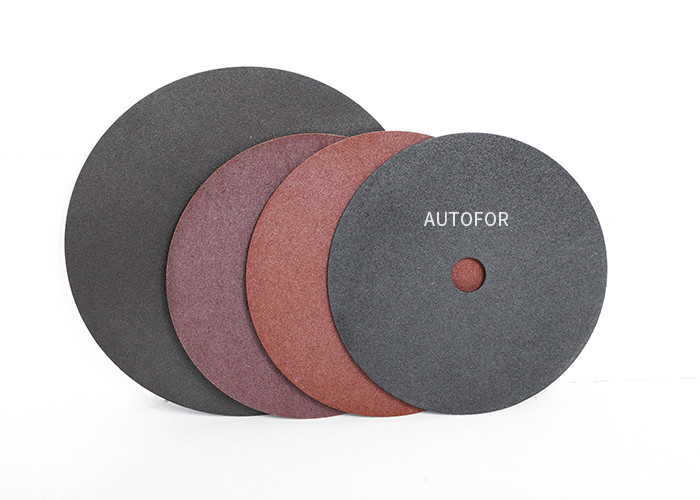

Cutter for Nanocrystalline/Ultrafine crystalline/F3CC
AUTOFOR has become a well-known manufacturer of nanocrystalline cutting wheels. If AUTOFOR cutting wheel matching with AUTOFOR cutting machine,you can achieve cutting port "mirror "effect , even if you don't use secondary grinding, then greatly save labor costs.The surface flatness is 0.03-0.06mm, ensuring that the cutting wheel durable and sharp port not burned, burr-free, flat, Smooth.No need mirror polishing.
Advantages:
1. No burr after cutting ,cutting resistance 20-80% better than Euro-Japanese-American Brand Cutting wheel.
2. No smoke during cutting
3. Cutting port quality very smooth,no burn,no loose
4. Germany technique, original manufacturer,so quality is high and the cost is low.The customers who start to work with us then cooparete for long time.
5. The accuracy is less than ±0.05mm
AUTOFOR specially develops more than 30 series of precise cut-off Wheel for magnetic core cores such as amorphous, nanocrystalline, ultrafine crystalline,silicon steel, permalloy, beryllium film, transformer, ferrite, ferrosilicon, ferronickel, ferrosilicon-aluminium, which are suitable for different customers and products with different personalized needs. The cut-off wheel are divided into sharp type and durable type.And AUTOFOR can make the cutting port smooth and bright without scatter,burns, expanding,then achieve seamless joint.
Magnetic Metal Core Cut-off Wheel specifications (mm)
| Model | OD | THK | ID | Line speed(m/s) |
| CX150 | 150 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX180 | 180 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX230 | 230 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX255 | 255 | ≥0.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX355 | 355 | ≥1.2 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX405 | 405 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX455 | 455 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
| CX510 | 510 | ≥2.0 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
Cutting effects:
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
