AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | ATF171101 |
| Minimum Order Quantity: | 1pcs |
| Price: | Negotiable |
| Packaging Details: | wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000 pcs/m |
| Size(LWH): | 980*1290*1860MM | Main Machine Weight: | 1750K |
|---|---|---|---|
| Cutting Mode: | Horizontal Cutting | Maximum Grinding Wheel: | Φ405MM |
| Aperture Of Suitable Grinding Wheel: | Φ32MM/31.75mm | Maximum RPM: | 4000 R/MIN |
| X-axis Range(MM): | 140MM | Feed Rate: | 0-1000MM/MIN |
| Feeding Mode: | Servo Feeding | Push And Cut Mode: | Y-cut |
| Water Tank Capacity: | 170L | Power Supply: | 380V/50HZ 480V/60HZ |
| Main Motor Power: | 11KW | Machine Power: | 12.8KW |
| Highlight: | magnetic core cutting machine,cnc cutting machine |
||

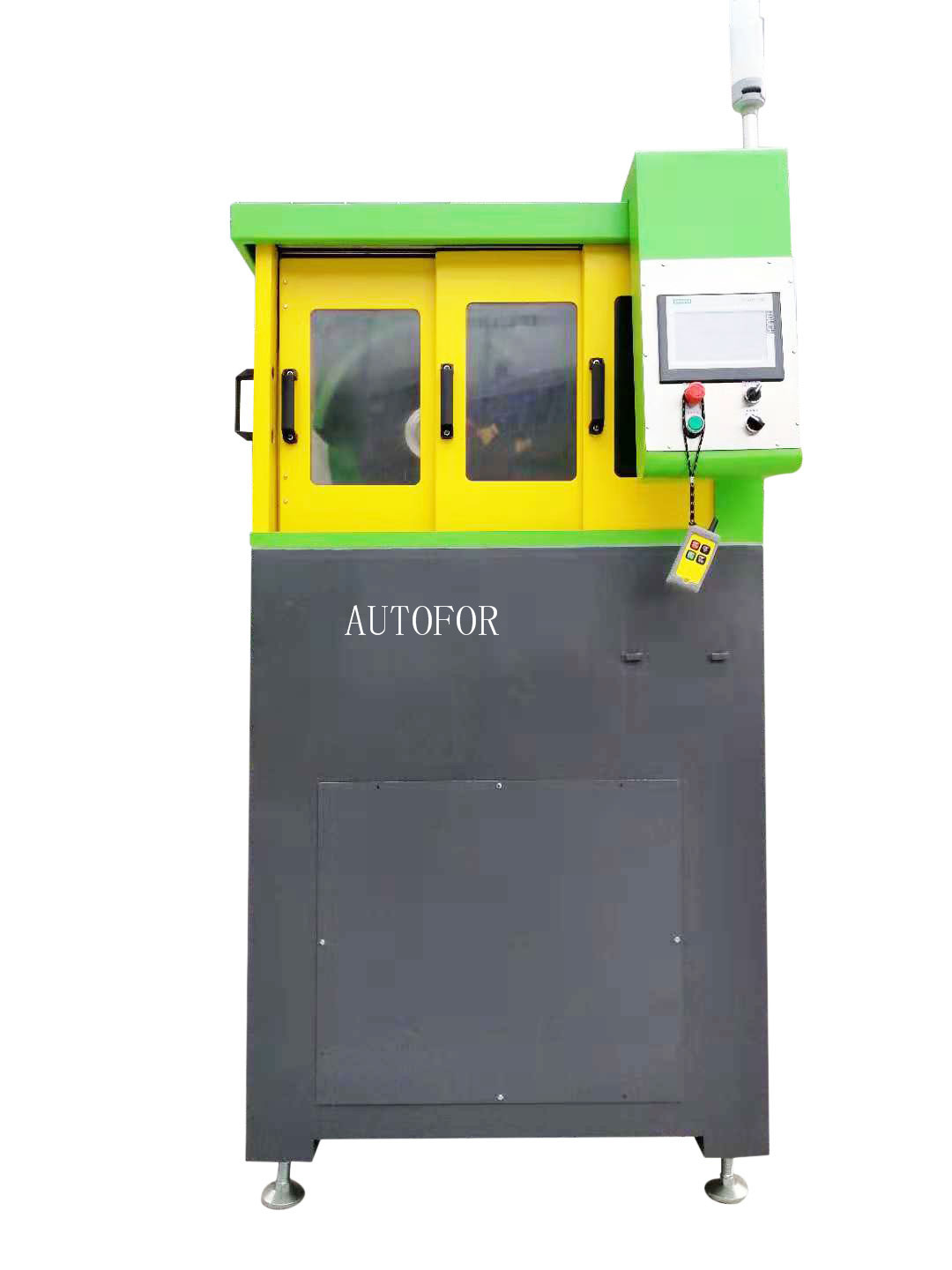

Water Jet Kool Mu Cutting Machine , Lamination Core Cutting Machine Stable
It's widely used for magnetic core same as KoolMu, transfomer core,silicon steel, amorphous, nanocrystalline, permalloy, Sendust,and the material of alloy metal such as ball cage, ball head, cast iron, carbon steel, die steel, tool steel, carbon steel.
AUTOFOR precision Kool Mu cutting machine features:
1. High-speed cutting can improve cutting accuracy and quality.
2. Powerful cooling system and high-speed cutting can improve the service life of 3% of cutting blades.
3. Adjustable feed design to ensure the quality of the cutting section.
4. Special mechanical structure, the cutting is stable and durable.
5. Precision spindle waterproof design, extending the life of the spindle.
6. It is specially designed for core cutting. It is not a general grinding machine modification, which can reduce the re-machining of secondary grinding and has less cutting labor.
7. Enables to be cut in the metallographic area.
3. Cutting equipment series
AUTOFOR Precision Cutting Machine has been in the global high-end market. Through UL, CE certification in Europe and America and CCC certification in China, it is in the leading position in the industry in terms of automation intelligence and technological innovation. More than 60 patents have been obtained for related cutting machines and fixtures in the exclusive industry, and customized design can also be carried out according to the different technical needs of different customers to achieve the goal of beautiful usage scenarios, and we never stop the pace to inventing and innovating
※Fifteen Advantages of Craftsmanship

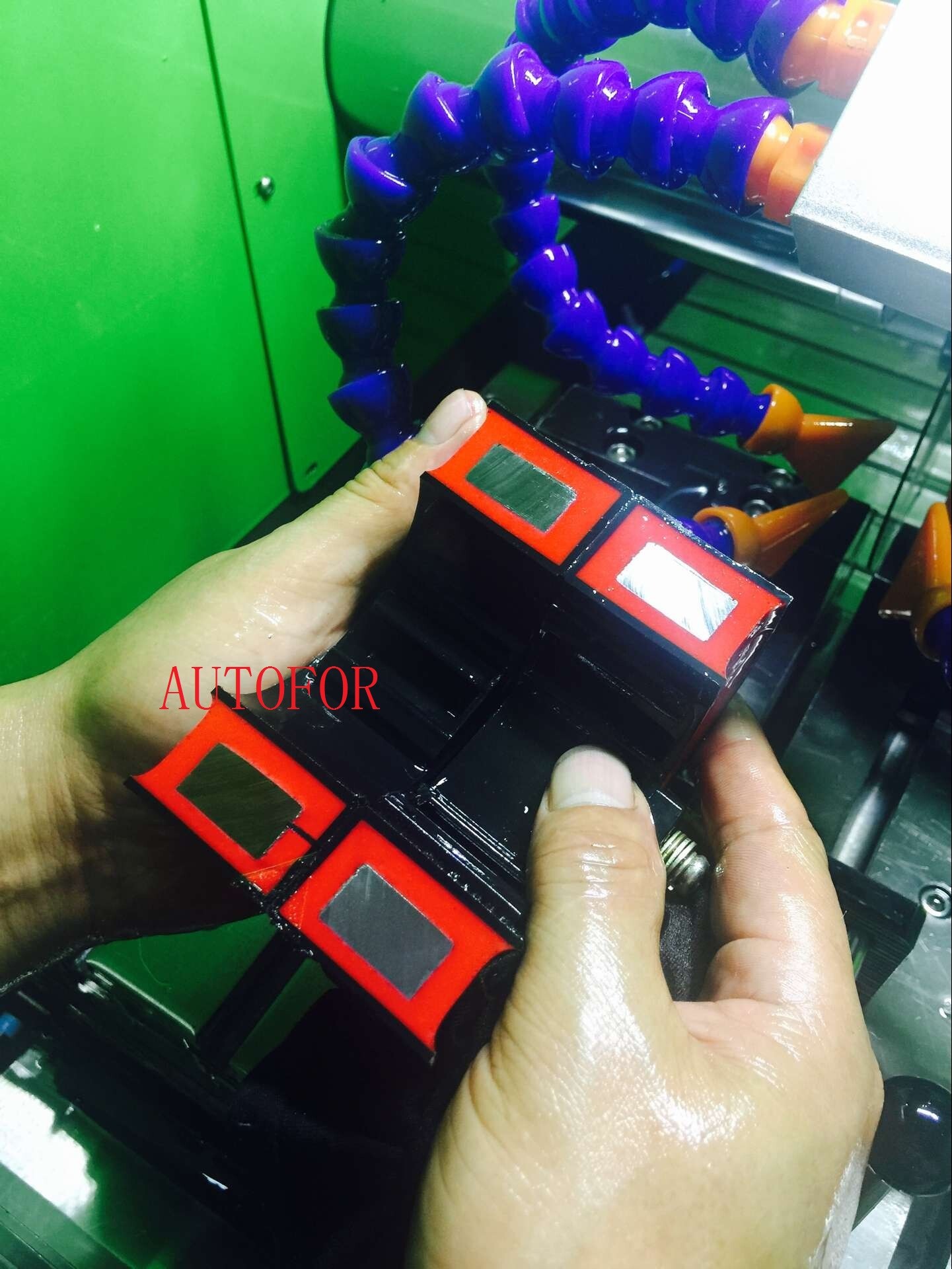

Cutting effects:
Customer's plant:
Since 2017,AUTOFOR was being exported to many magnetic cores cutting machine to Germany,Spain,America,Japan,India ,etc...,and won very good comment from the customers.
