Window Regulator Cnc Pipe Cutting Machine , Tube Sawing Machines Fixed Length

AUTOFOR cutting machine for control cables/mechanic cables/thrott cables/window regulators

This precision cutting machine is suitable for precision cutting of spring tube, push-pull tube, extension tube, steel tube and other products,cutting the fixed length of the coiled plastic flat spiral tube or the plastic straight tube (collectively referred to as the hose)φ3.4~φ12mm(or>φ12~φ16 mm ).The length of 2500mm or less enables to be cut by changing the fixture.

AUTOFOR advantages:
1. Have a practical new patent: patent for automatic refrigeration of cutting point refrigerator. The automatic chiller cools the gas in the air pipe so that the gas blown by the air gun at the cutting point is a cold gas. The problem of cutting points is greatly reduced, preventing fuzzing, burns, and reducing cutting burrs.
2. automatic compensation of cutting line speed: In order to ensure that the cutting piece maintains the same cutting line speed during the cutting process, AUTOFOR specially sets the “cutting line speed automatic compensation” function. When the cutting piece is worn out and becomes small, the cutting opportunity automatically increases the speed of the cutting piece to ensure that the line speed is always consistent.
3. Automatic compensation function for cutting piece feeding distance: the cutting piece will be weakened by wear, and the position of the cutting point will be automatically compensated. The position of the original point will remain unchanged at the original set position, which greatly provides the overall cutting efficiency.
4. the world's first: double hopper automatic counting and switching. When the Alofo automatic cable cutter is cutting, the cut cable will be placed in the first hopper according to the set number. When the number of cuts reaches the set number, all the cut cables will be cut. Automatically switch to the second hopper to facilitate reclaiming. This has the benefits of improved work efficiency, accurate counting, and ease of operation.
5. the world's first: three-color signal alarm indicator. The signal warning indicator developed by AUTOFOR in cooperation with the German AMA company is three colors. The device will display the corresponding color for warning in different states. Red indicates fault, green is normal cutting work, and orange is standby.
6. Using Schneider servo drive feeding system; feeding is more stable, higher precision and longer service life.
7. Each device comes with an automatic vacuum system. Altov uses industrial vacuum cleaners for dust removal, and the waste dust generated during cutting will be treated uniformly to optimize the working environment. The vacuum cleaner is used in one or two built-in devices, which greatly reduces the floor space.
8. More than 80% of the electrical components of the whole machine are equipped with European and American day and night. In order to improve the overall quality of the equipment, the electrical components on the machine are configured in Europe and the United States, such as Siemens inverters and PLCs, Schneider Electric switches, Yadeke cylinders, etc.

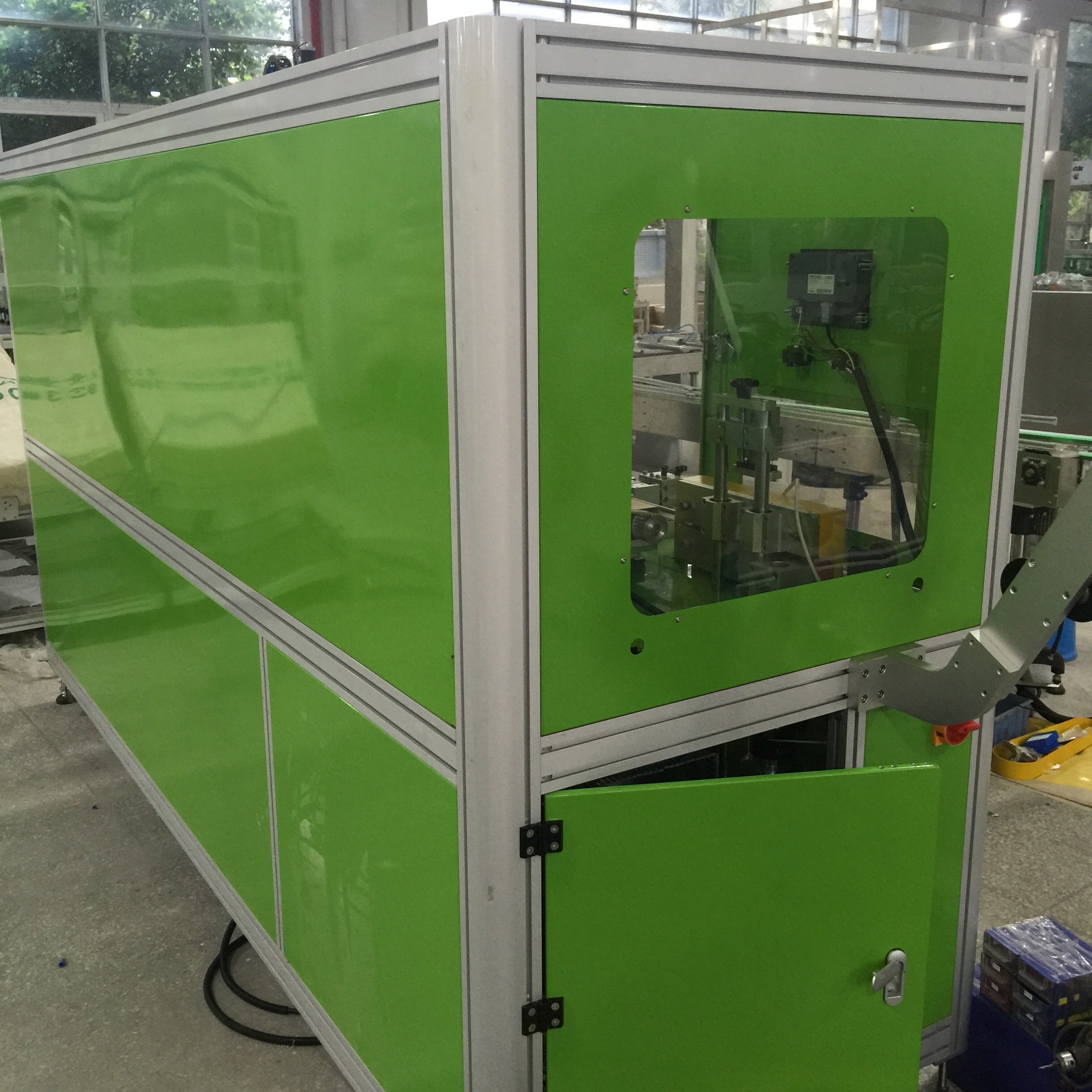

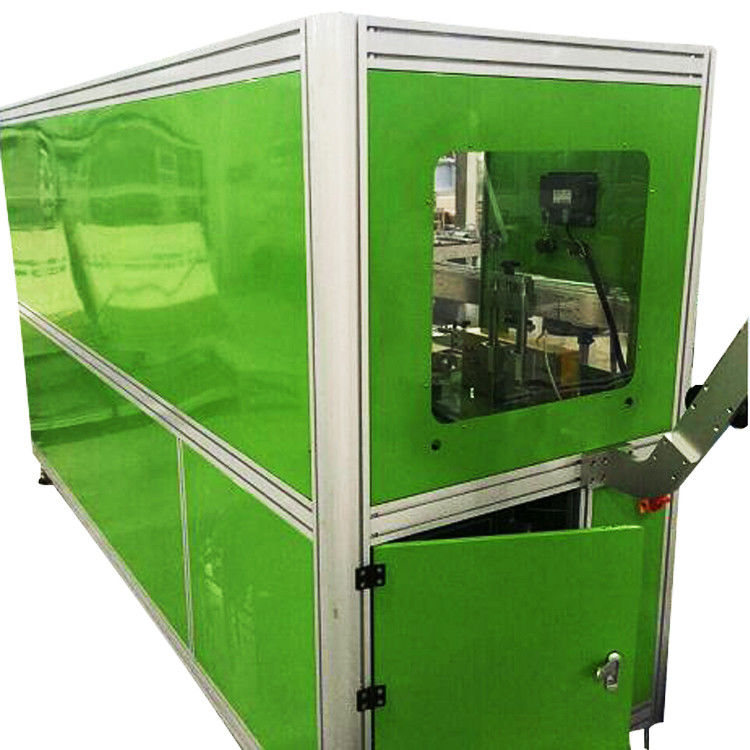

9. The appearance of the frame adopts all-aluminum frame and green design. The equipment is made of real materials, using 50*80mm aluminum alloy square column to make the whole frame, and the outer seal is made of stainless steel plate, the overall stability of the equipment is high. The paint color is selected from green and green paint that symbolizes green environmental protection.
10. AUTOFOR cable conveying mechanism: the upper and lower belts are used to suppress long-distance transportation, which solves the problem of “reverse smashing” of the two-wheel conveying and cable in the same industry;
11. The detection source of the “wrapped line card” at the source of the cable: the cable in the cable box is inevitably entangled and the cable line is faulty. When this happens, the detection mechanism of the Altof AUTOFOR will act and be intelligent. Alarm to remind the operator to exclude;
12. cable "joint detection and rejection" function: After hundreds of meters, the cable will appear "joint", AUTOFOR's organization will identify, in the case of no waste, cut and remove, reduce unnecessary waste for customers ;
13. Environmentally friendly and pollution-free dust cover: AUTOFOR embodies the concept of environmental protection, so that the dust generated during the cutting process is not allowed to spread everywhere, affecting the workshop environment and the health of workers;

The advantages of the above-mentioned equipment are the advantages that the AUTOFOR cable automatic cutting machine has achieved. AUTOFOR will also be equipped with automatic chamfering or professional automatic chamfering equipment on the equipment to be introduced to the market. In the future, AUTOFOR will continue to adopt the opinions and suggestions of all parties, continuously upgrade the equipment, and continuously provide you with the best quality and most comprehensive services

Cutting effects:
