AUTOFOR，the innovator of "precision cutting technology"!
--Even if you produce a pot,you should let it service for several genaration!
| Place of Origin: | China |
|---|---|
| Brand Name: | AUTOFOR |
| Certification: | CE/SGS/ISO90001 |
| Model Number: | CX305 |
| Minimum Order Quantity: | 100pcs |
| Price: | Negotiable |
| Packaging Details: | carton/wooden/customized |
| Delivery Time: | 15 days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 1000000 pcs/m |
| Material: | Resin | Product Name: | Cutting Disc |
|---|---|---|---|
| Color: | Red/black/green | Application: | Amorphous, Nanocrystalline, Ultrafine Crystalline, Silicon Steel, Silicon Steel, Beryllium Film, Transformer, Ferrite, Ferrosilicon, Ferronickel , Ferrosilicon-aluminium |
| Size: | Customized | Max Speed: | 4700 R/min |
| Highlight: | ultra thin cutting discs,metal cut off wheel |
||

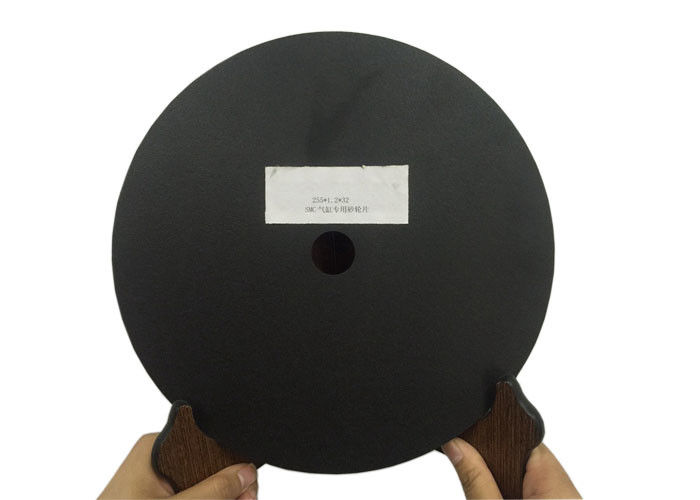

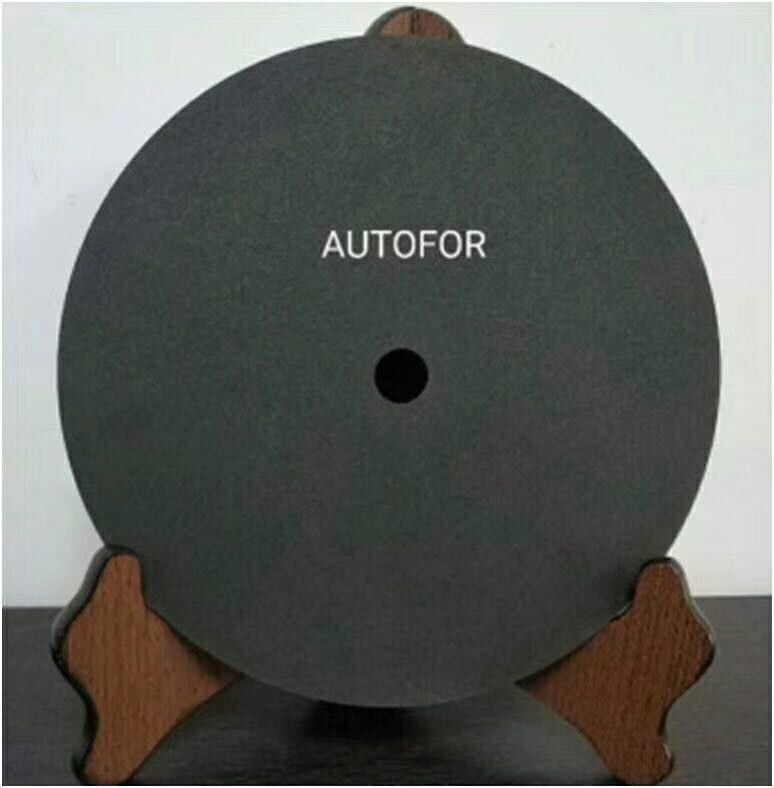

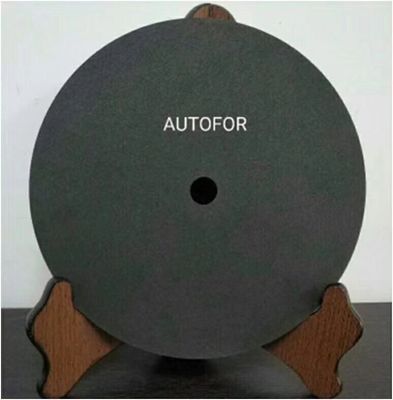

Ultra-thin resin cutting wheel for amorphous alloy core and nanocrystalline core
AUTOFOR has become a well-known manufacturer for amorphous, nanocrystalline, ultrafine crystalline,silicon steel, silicon steel, beryllium film, transformer, ferrite, ferrosilicon, ferronickel, ferrosilicon-aluminium.The surface flatness is 0.03-0.06mm, ensuring that the cutting wheel durable and sharp port not burned, burr-free, flat, Smooth.If AUTOFOR cutting wheel matching with AUTOFOR cutting machine can achieve port "mirror " effect and no need secondary grinding, then greatly save labor costs.
Product Formula of the cutting wheel can be adjusted to meet different materials.
Magnetic Metal Core Cut-off Wheel specifications (mm)
| Model | OD | THK | ID | Line speed(m/s) |
| CX150 | 150 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX180 | 180 | ≥0.3 | 12.7/16/25.4/30/31.75/32/40/50 | 50--80 |
| CX205 | 205 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX230 | 230 | ≥0.4 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX255 | 255 | ≥0.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--70 |
| CX305 | 305 | ≥1.0 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX355 | 355 | ≥1.2 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX405 | 405 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 50--60 |
| CX455 | 455 | ≥1.5 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
| CX510 | 510 | ≥2.0 | 12.7/16/25.4/30/31.75/32/40/50 | 40--50 |
Cutting effects:
Environmental Protection
AUTOFOR is committed to providing high quality and environmental friendly products for customers. We always put the ISO14001 environmental system into practice. All products of its brands have passed SGS environmental certification. The products are harmless to the environment and human body, and they can achieve zero pollution and zero emission. Let us protect the environment and build a beautiful home together by starting with AUTOFOR!
Application field
AUTOFOR products are widely used in aerospace, automobile, energy, electronics, education and other fields. In the industry of precision cutting technology, it has been in the forefront of domestic counterparts.
